BT50 MT1 DRW

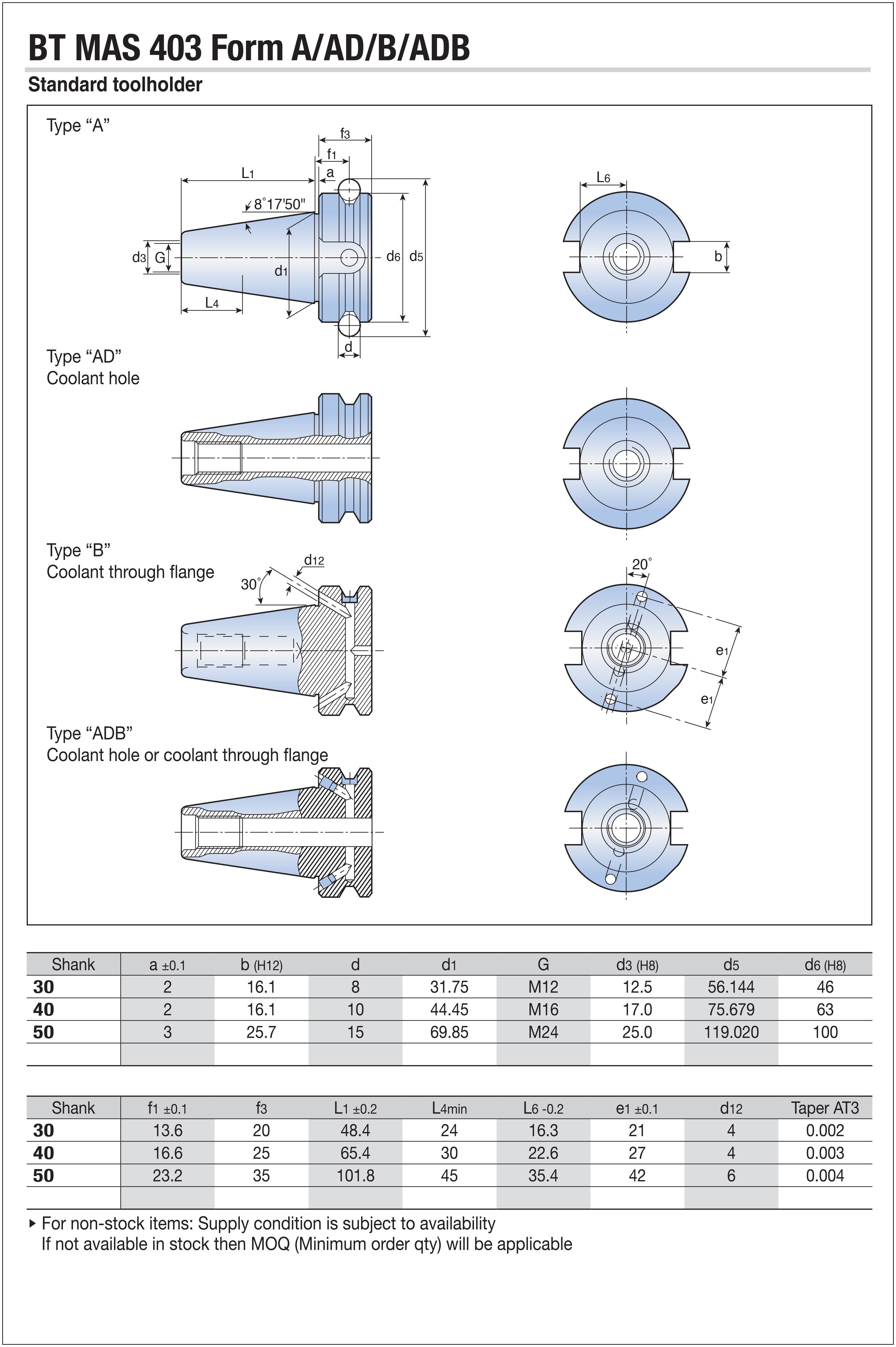

DIN 6383 / DIN 228-2 form B draw bar Morse taper adapter with MAS-403 form A taper shanks
Price: Log in For Price
Toote spetsifikatsioonid

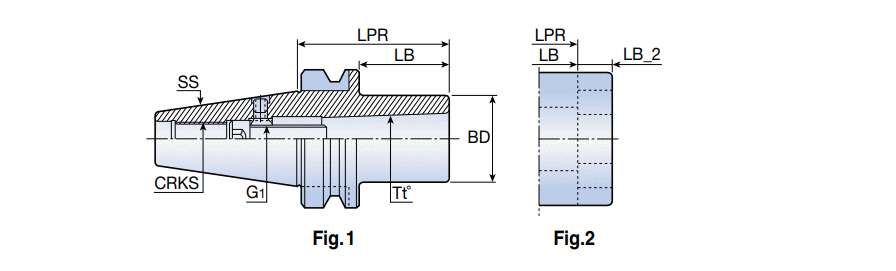

| Body Half Taper Angle (BHTA) | MT1 Degrees | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 25 mm |
| Measurement Type | Metric | Functional Length (LF) | 45 mm |
| Application | | Morse Taper | | Body Material | Steel |
| Protruding Length (LPR) | 7 mm | Unit | M |
Toote omadused
| FamilyDesc | DIN 6383 / DIN 228-2 form B draw bar Morse taper adapter with MAS-403 form A taper shanks | FamilyName | BT-MT-DRW |
| COO | ITALY | BrandName | Taegutec |
Shipping Info
PackageWeight
3.8000
Name
Morse Taper Adapters
FamilyName
BT-MT-DRW
BrandName
Taegutec
