Toote spetsifikatsioonid

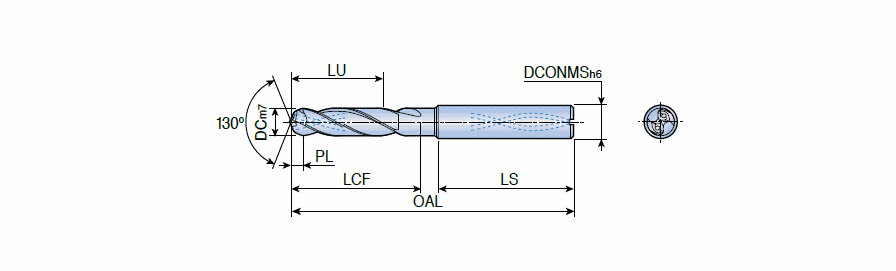

| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Grade | TT9030 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Usable Length (LU) | 14 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 62 mm |
| Point Length (PL) | 1.4 mm | Body Material | Carbide |
| Shank Length (LS) | 34 mm | Unit | M |

Toote omadused
| FamilyDesc | Solid carbide drills with coolant holes, multi-angle cutting edges and drilling depth 3xD exclusively for cast iron machining | COO | S.KOREA |
Shipping Info
PackageWeight
0.0190
