SHO 15100 TT9030
Solid long drills with oil holes for M.Q.L. drilling & drilling depth 10/15/20xD
Price: Log in For Price
Toote spetsifikatsioonid

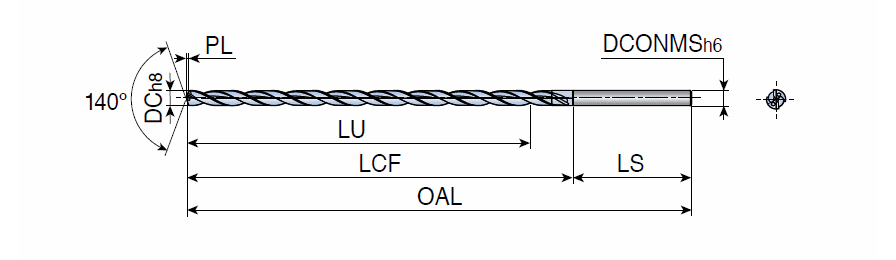

| Drill Bit Size / Cutting Diameter (DC) | 10 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm | Grade | TT9030 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Usable Length (LU) | 173 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 181.6 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Overall Length (OAL) | 241.6 mm |
| Point Length (PL) | 1.6 mm | Body Material | Carbide |
| Shank Length (LS) | 60 mm | Unit | M |
Toote omadused
| FamilyDesc | Solid long drills with oil holes for M.Q.L. drilling & drilling depth 10/15/20xD | COO | S.KOREA |
Shipping Info
PackageWeight
0.1760
