DEB 2080L TT6050

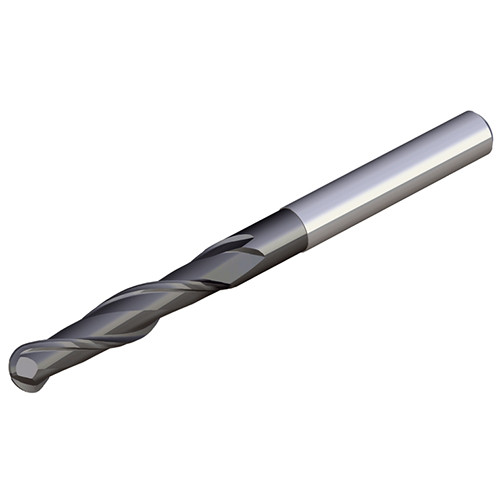

Solid carbide ball nose end mills with long & 2 flute for graphite machining
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 40 mm | Corner Radius (RE) | 4 mm |
| Overall Length (OAL) | 110 mm | Neck Diameter (DN) | 7.5 |
| Cutting Edge Material | Carbide | Grade | TT6050 |
| Coating | Diamond | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| Usable Length (LU) | 60 mm |
Toote omadused
| FamilyDesc | Solid carbide ball nose end mills with long & 2 flute for graphite machining | FamilyName | DEB 2...L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0200
Name
Ballnose End Mills
FamilyName
DEB 2...L
BrandName
Taegutec
