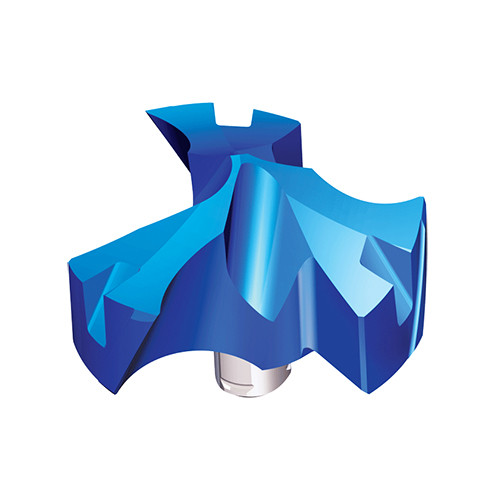

‎3ED-141-P+ TT5130

Exchangeable 3 flute drill heads for steels and cast irons with high productivity

Nimetus # TTK6238931

BrandName: Taegutec

Tootja nr: 6238931

Toote spetsifikatsioonid

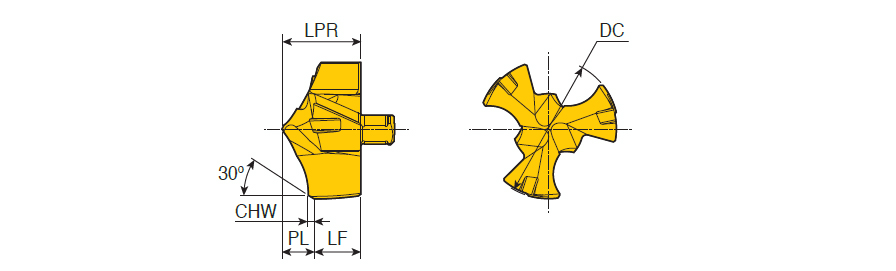

Cutting Diameter (DC)	14.1 mm	Cutting Edge Material	Carbide
Applicable Material	\| Steel \| Cast Iron \|	Measurement Type	Metric
Application	\| Drilling \| Hole Making Inserts \|	Point Length (PL)	3.17 mm
Grade	TT5130	Coating	Multi TiAlN
Protruding Length (LPR)	7.9 mm	Corner Chamfer Width (CHW)	0.4 mm
Insert Seat Size Code (SSC)	14	Body Material	Carbide
Functional Length (LF)	4.73 mm	Unit	M

FamilyDesc	Exchangeable 3 flute drill heads for steels and cast irons with high productivity	COO	S.KOREA

PackageWeight

0.0130
