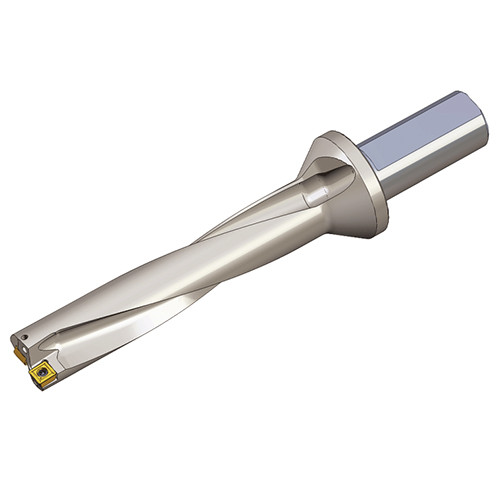

TDR 5180-25T2-06
Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD
Price: Log in For Price
Toote spetsifikatsioonid

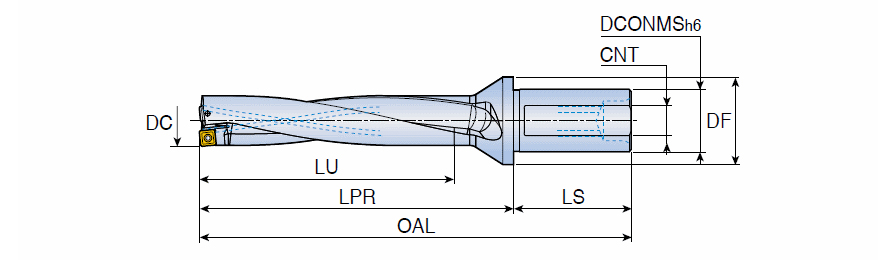

| Cutting Diameter (DC) | 18 mm | Overall Length (OAL) | 167 mm |
| Usable Length (LU) | 90 mm | Connection Thread Size (Ts) | M16X1.5 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Length Group | 5xD |
| Shank Length (LS) | 56 mm | Body Material | Steel |
| Functional Length (LF) | 111 mm | Unit | M |
Toote omadused
| FamilyDesc | Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD | COO | S.KOREA |
Shipping Info
PackageWeight
0.3900
