TOP 4420-40T2-13

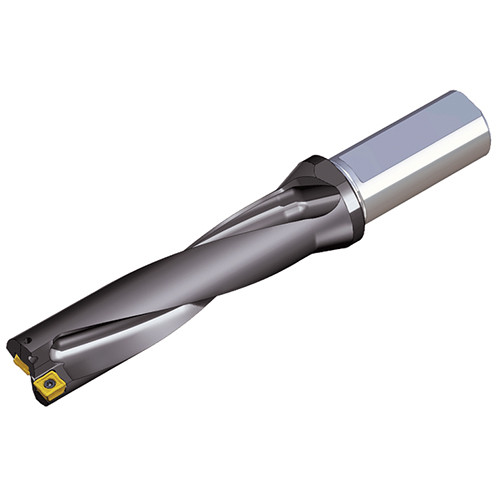

Indexable drills with unique square inserts & coolant holes, drilling depth 4xD
Price: Log in For Price
Toote spetsifikatsioonid

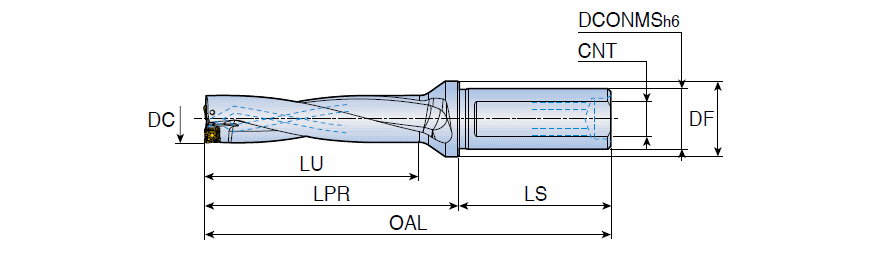

| Cutting Diameter (DC) | 42 mm | Overall Length (OAL) | 266 mm |
| Usable Length (LU) | 168 mm | Connection Thread Size (Ts) | M30X2.0 |
| Application | | Drilling | Tools for Swiss Machines | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Length Group | 4xD |
| Shank Length (LS) | 70 mm | Body Material | Steel |
| Functional Length (LF) | 196 mm | Unit | M |
Toote omadused
| FamilyDesc | Indexable drills with unique square inserts & coolant holes, drilling depth 4xD | COO | S.KOREA |
Shipping Info
PackageWeight
1.8100
