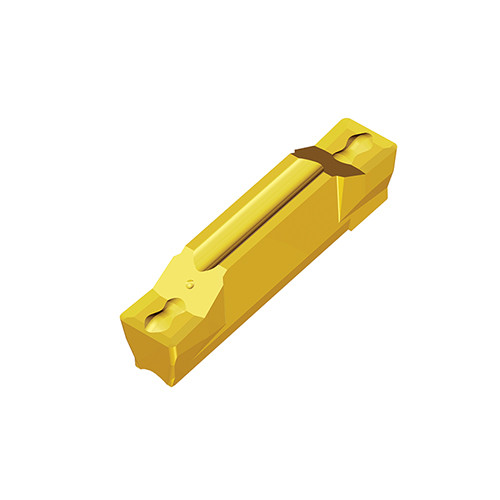

TDFT 3E-0.4L TT5100
Precision double-ended inserts for face grooving and turning
Price: Log in For Price
Toote spetsifikatsioonid

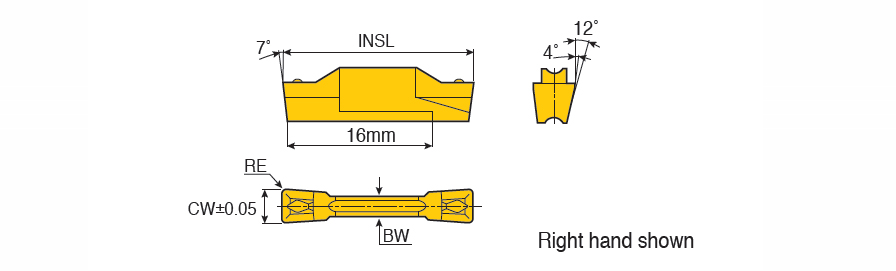

| Cutting Width (CW) | 3 mm | Min D.O.C. | 0.5 mm |
| Insert Length (INSL) | 20 mm | Min. Grooving Feed (fg(min)) | 0.07 mm |
| Corner Radius (RE) | 0.4 mm | Max. Grooving Feed (fg(max)) | 0.15 mm |
| Insert Thickness Total (S1) | 4.7 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Cutting Edge Material | Carbide | Max. Turning Feed (ft(max)) | 0.22 mm/rev |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
| Grade | TT5100 | Coating | TiCN+Al2O3+TiN |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Inserts | Int. Face Grooving | Int. Face Grooving & Turning | | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2 mm | Unit | M |
Toote omadused
| FamilyDesc | Precision double-ended inserts for face grooving and turning | FamilyName | TDFT-E-R/L |
| Remarks | Apply R insert on R tool and L insert on L tool | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
PackageWeight
0.0043
Name
Face Groove/Turn Indexable Inserts
FamilyName
TDFT-E-R/L
BrandName
Taegutec
