MTEC 1010D21 1.5ISO TT9030

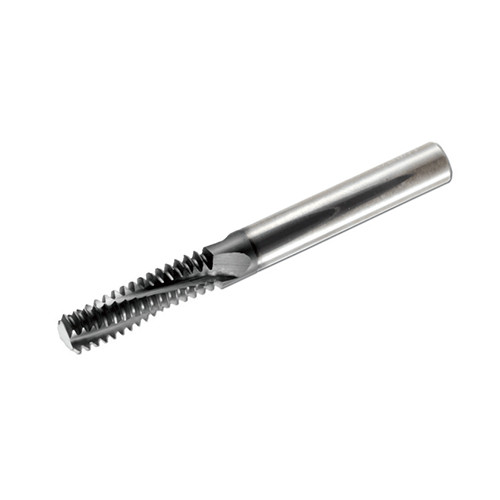

Solid carbide internal threading end mills for ISO metric threads
Price: Log in For Price
Toote spetsifikatsioonid

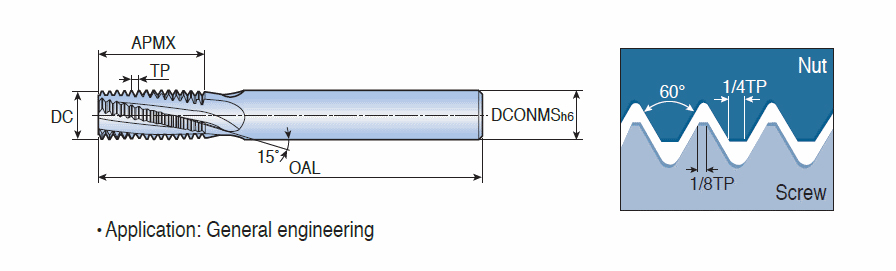

| Thread Size | - | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 21.8 mm |
| Overall Length (OAL) | 73 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | TT9030 |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Toote omadused
| FamilyDesc | Solid carbide internal threading end mills for ISO metric threads | COO | ISRAEL |
Shipping Info
PackageWeight
0.0750
