Toote spetsifikatsioonid
| Applicable Material | | Steel | | Grade | TT8125B |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.5 mm |

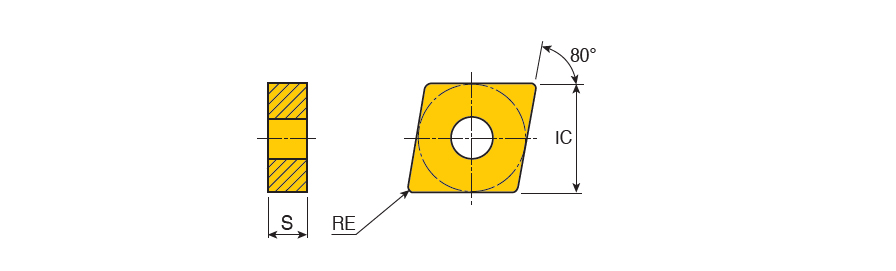

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 9.7 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Toote omadused
| FamilyDesc | Negative 80° Rhombic RHINOTURN inserts for general machining of stainless steels & steels | FamilyName | CNMG-MM (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0061
Name
Turning Indexable Inserts
FamilyName
CNMG-MM (RHINO)
BrandName
Taegutec
