TNMG 220404 R-FS TT8125B

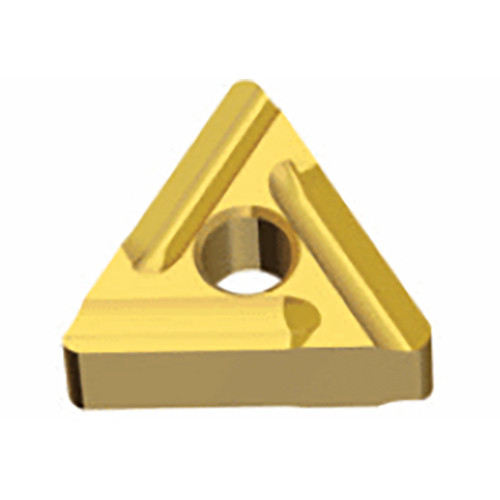

Negative 60° Triangular inserts for semi-finishing of steel with chip former
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Steel | | Grade | TT8125B |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.8 mm |

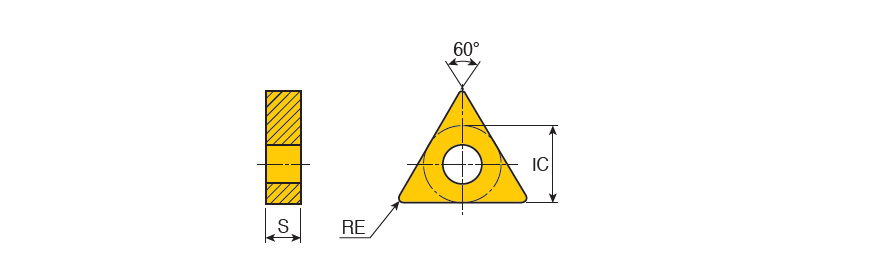

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Toote omadused
| FamilyDesc | Negative 60° Triangular inserts for semi-finishing of steel with chip former | FamilyName | TNMG R/L-FS |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0144
Name
Turning Indexable Inserts
FamilyName
TNMG R/L-FS
BrandName
Taegutec
