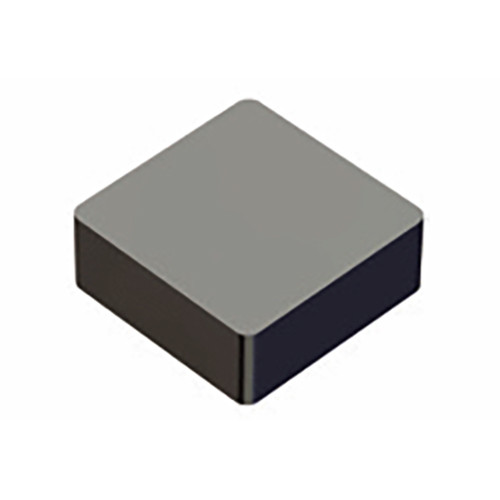

SNGN 120408 AB30
Negative Square ground Ceramic inserts without hole for cast iron & hardened steel machining
Price: Log in For Price
Toote spetsifikatsioonid

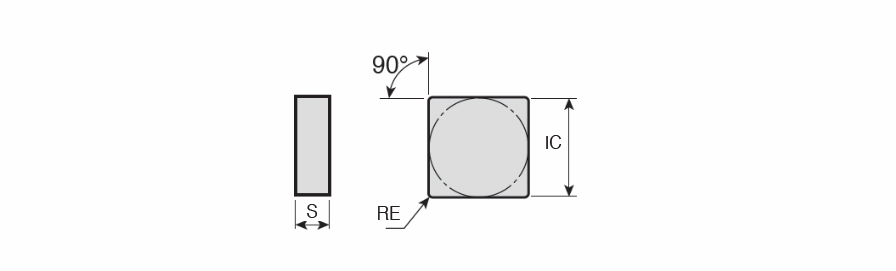

| Applicable Material | | Cast Iron | Hard Materials | | Grade | AB30 |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Ext 75° App 90° Square | Ext 75° App Face 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Toote omadused
| FamilyDesc | Negative Square ground Ceramic inserts without hole for cast iron & hardened steel machining | FamilyName | SNGN-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0047
Name
Turning Indexable Inserts
FamilyName
SNGN-CERAMIC
BrandName
Taegutec
