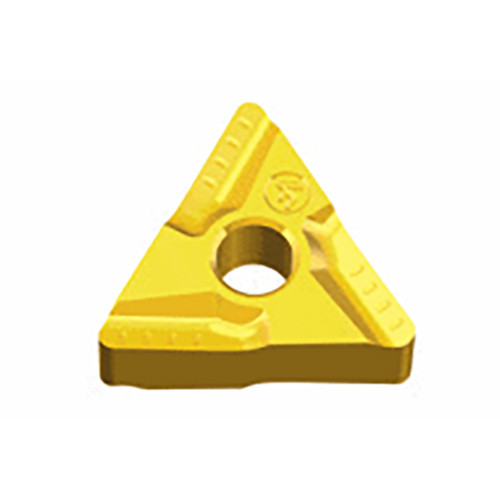

TNMG 160404 L-VF CT3000
Negative 60° Triangular inserts for medium machining of slender bar of steel & stainless steel without vibration from high positive rake geometry
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | CT3000 |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.7 mm |

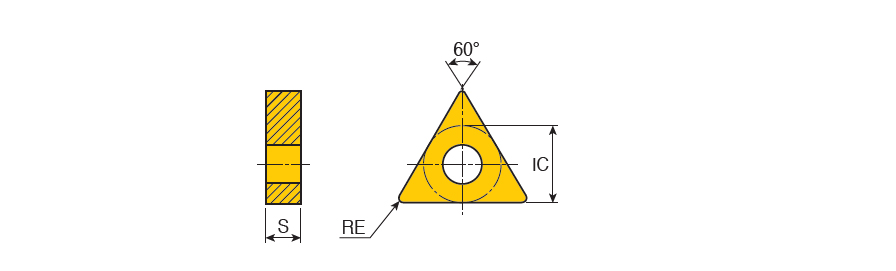

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | Cermet | Unit | M |
Toote omadused
| FamilyDesc | Negative 60° Triangular inserts for medium machining of slender bar of steel & stainless steel without vibration from high positive rake geometry | FamilyName | TNMG R/L-VF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0042
Name
Turning Indexable Inserts
FamilyName
TNMG R/L-VF
BrandName
Taegutec
