Toote spetsifikatsioonid
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.1 mm |

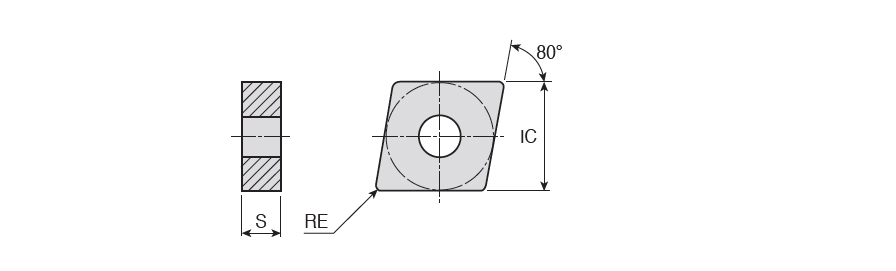

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
| Grade | AB20 |
Toote omadused
| FamilyDesc | Negative 80° Rhombic ground Ceramic inserts with hole for cast iron and hardened steel machining | FamilyName | CNGA-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0043
Name
Turning Indexable Inserts
FamilyName
CNGA-CERAMIC
BrandName
Taegutec
