CNMA 120416 TT7005
Negative 80° Rhombic inserts without chip former for cast irons & short-chipped materials
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Cast Iron | | Grade | TT7005 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 2 mm |

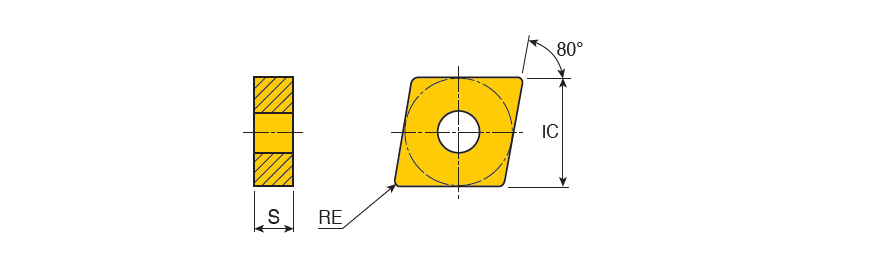

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 6 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.8 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Toote omadused
| FamilyDesc | Negative 80° Rhombic inserts without chip former for cast irons & short-chipped materials | FamilyName | CNMA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0113
Name
Turning Indexable Inserts
FamilyName
CNMA
BrandName
Taegutec
