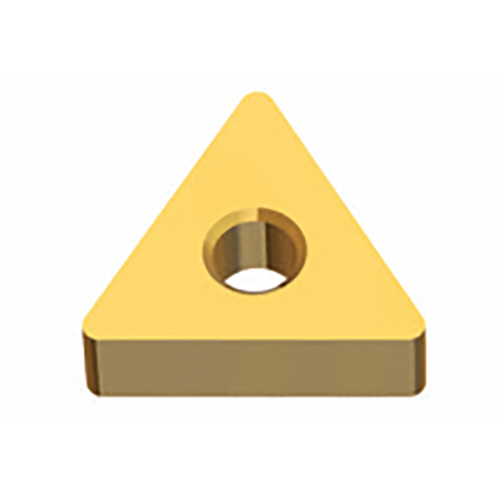

TNMA 160404 TT7015
Negative 60° Triangular insert without chip former for rough machining of cast irons
Price: Log in For Price
Toote spetsifikatsioonid

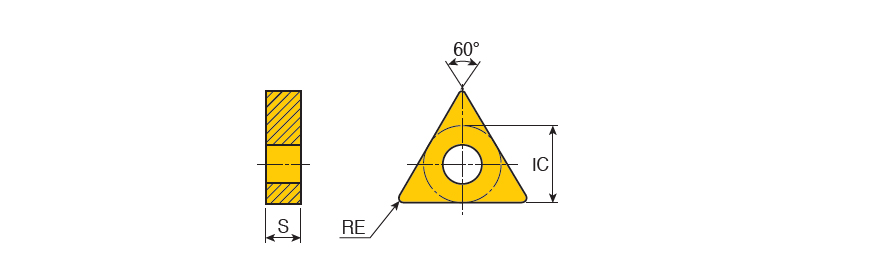

| Applicable Material | | Cast Iron | | Grade | TT7015 |
| Application | | Ext 60° App 60° Triangle | Ext 60° Neutral 60° Triangle | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Toote omadused
| FamilyDesc | Negative 60° Triangular insert without chip former for rough machining of cast irons | FamilyName | TNMA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0086
Name
Turning Indexable Inserts
FamilyName
TNMA
BrandName
Taegutec
