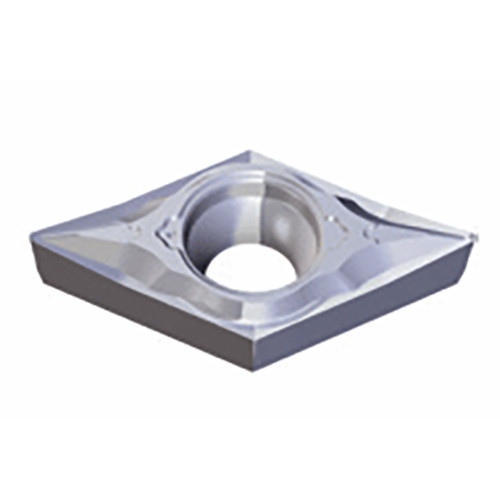

DCGT 11T302 SA TT5080
Positive ground 55° Rhombic inserts for finishing to medium machining of small components
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Ext 93° App Shift 55° Diamond | Ext 93° App Sleeve 55° Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.1 mm |

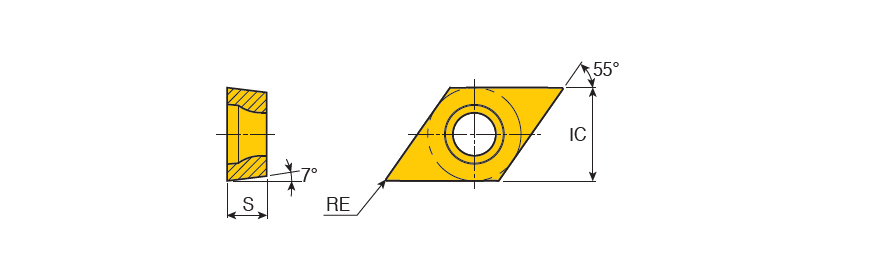

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 11.6 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Toote omadused
| FamilyDesc | Positive ground 55° Rhombic inserts for finishing to medium machining of small components | FamilyName | DCGT-SA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0058
Name
Turning Indexable Inserts
FamilyName
DCGT-SA
BrandName
Taegutec
