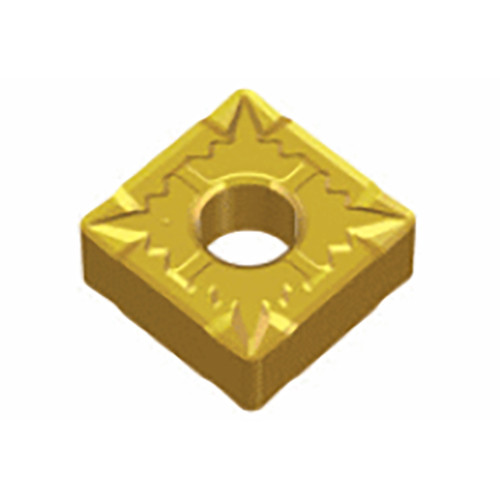

SNMG 120408 EA TT9235
Negative Square inserts for finish machining of exotic materials
Price: Log in For Price
Toote spetsifikatsioonid
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9235 |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Ext 75° App 90° Square | Ext 75° App Face 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 0.1 mm |

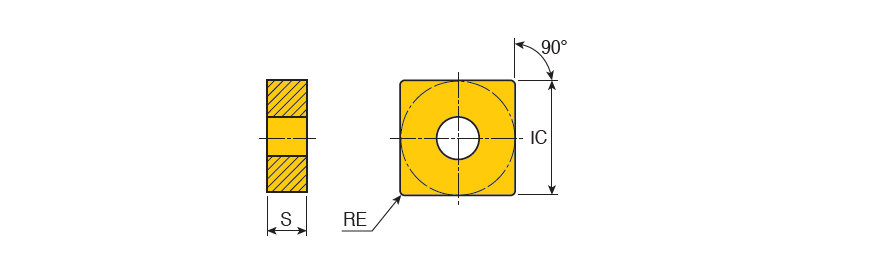

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Toote omadused
| FamilyDesc | Negative Square inserts for finish machining of exotic materials | FamilyName | SNMG-EA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0092
Name
Turning Indexable Inserts
FamilyName
SNMG-EA
BrandName
Taegutec
