Toote spetsifikatsioonid
| Applicable Material | | Steel | | Grade | TT7100 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 5 mm |

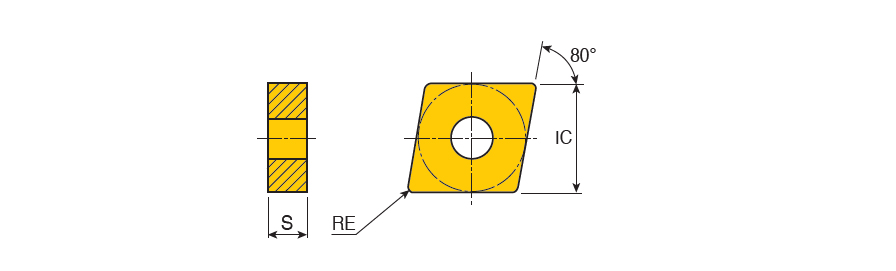

| Corner Radius (RE) | 2.4 mm | Depth of Cut Maximum (APMX) | 12 mm |
| Cutting Edge Length (L) | 25.79 mm | Min. Turning Feed (ft(min)) | 0.55 mm/rev |
| Insert Thickness (S) | 7.94 mm | Max. Turning Feed (ft(max)) | 1.3 mm/rev |
| Inscribed Circle Diameter (IC) | 25.4 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Toote omadused

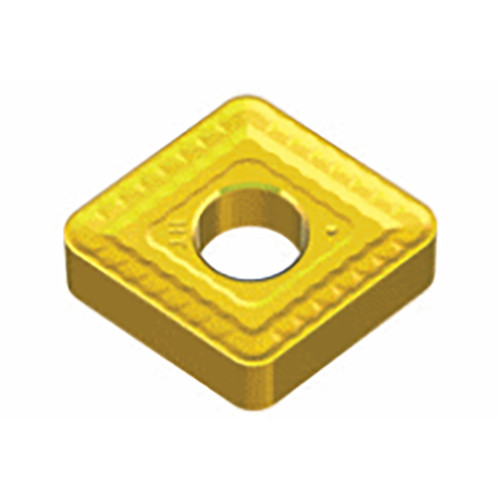

| FamilyDesc | Negative Single-sided 80° Rhombic inserts for heavy roughing with low cutting force & excellent chip control | FamilyName | CNMM-HT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0629
Name
Turning Indexable Inserts
FamilyName
CNMM-HT
BrandName
Taegutec
