TDT 1.25-0.20 CT3000

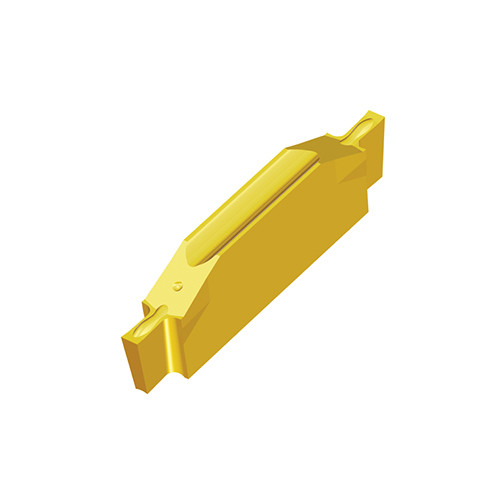

Precision double-ended inserts for external grooving only
Price: Log in For Price
Toote spetsifikatsioonid

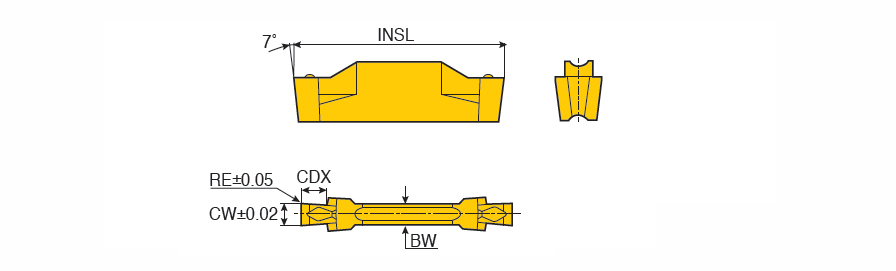

| Cutting Width (CW) | 1.25 mm | Cutting Edge Material | Cermet |
| Corner Radius (RE) | 0.2 mm | Application | | Ext. Grooving | Inserts | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Thread Pitch Maximum (TPX) | 4.7 mm | Insert Seat Size Code (SSC) | 2 |
| Insert Length (INSL) | 20 mm | Measurement Type | Metric |
| Coating | Cermet | Body Material | Carbide |
| Grade | CT3000 | Unit | M |
Toote omadused
| FamilyDesc | Precision double-ended inserts for external grooving only | FamilyName | TDT (External Grooving only) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0025
Name
Groove/Turn Indexable Inserts
FamilyName
TDT (External Grooving only)
BrandName
Taegutec
