Toote spetsifikatsioonid

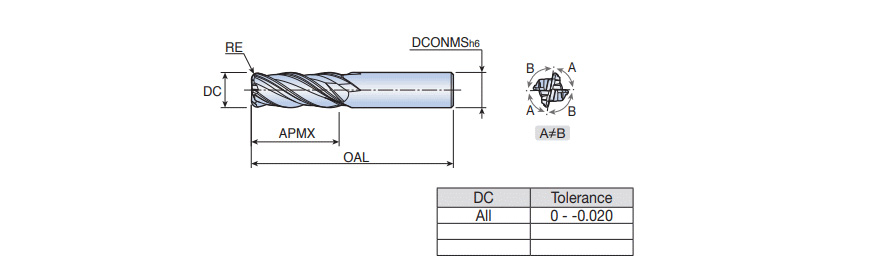

| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 30 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 83 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide | Grade | TT5520 |
| Coating | AlCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees | Unit | M |
| Shank Type | Round |
Toote omadused
| FamilyDesc | 4 flute, corner R type solid carbide end mills with different helix and unequal spacing for machining of steels including alloy,carbon, mold as well as stainless | FamilyName | UHP 4...R |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.1185
Name
Square & Corner Radius End Mills
FamilyName
UHP 4...R
BrandName
Taegutec
