Toote spetsifikatsioonid

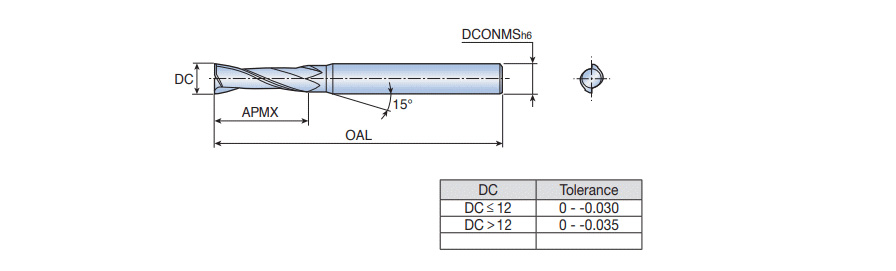

| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 72 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | TT5525 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Unit | M |
Toote omadused
| FamilyDesc | Solid carbide end mills with flat type & medium & 4 flute for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels | FamilyName | TSE 4...M |
| COO | S.KOREA | BrandName | TaeguTec |
Saadetise info
PackageWeight
0.0790
Name
Square & Corner Radius End Mills
FamilyName
TSE 4...M
BrandName
TaeguTec
