Toote spetsifikatsioonid

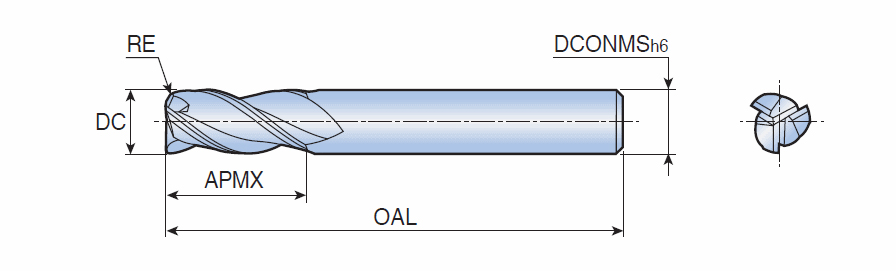

| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Cast Iron | |
| Depth of Cut Maximum (APMX) | 25 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 75 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Grade | TT6050 |
| Coating | Diamond | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 40 Degrees | Unit | M |
| Shank Type | Round |
Toote omadused

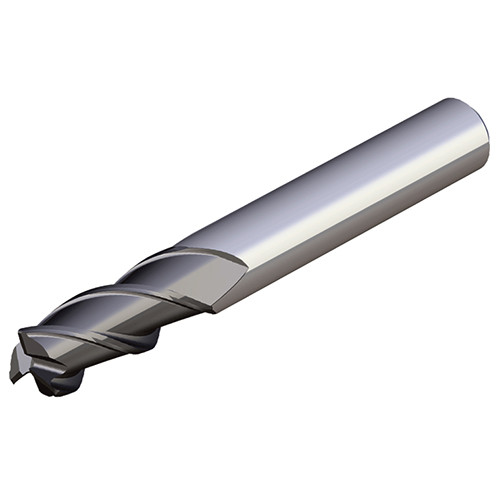

| FamilyDesc | Solid Carbide Endmills for graphite machining | FamilyName | DER 3...S |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0200
Name
Square & Corner Radius End Mills
FamilyName
DER 3...S
BrandName
Taegutec
