S16Q STFNL 1304

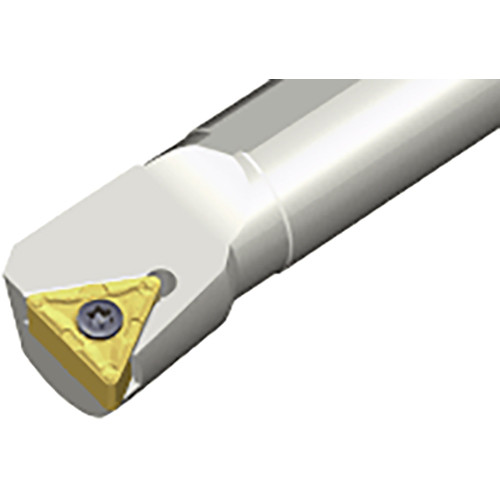

Screw type RHINOTURN boring bars for TN.. 1304 inserts with 91° approach angle
Price: Log in For Price
Toote spetsifikatsioonid

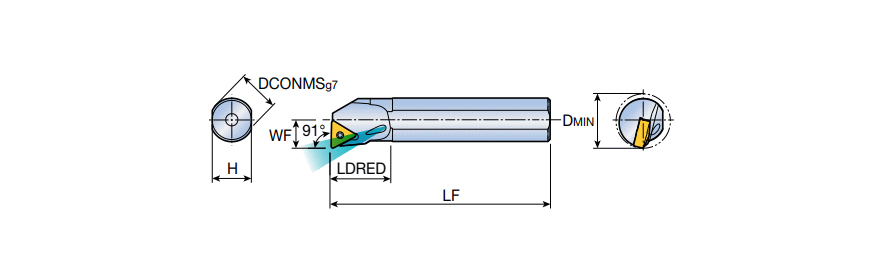

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Int 91° App 60° Triangle | |
| Functional Length (LF) | 180 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 25 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Toote omadused
| FamilyDesc | Screw type RHINOTURN boring bars for TN.. 1304 inserts with 91° approach angle | FamilyName | S-STFNR/L (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.2950
Name
Indexable Internal Turning Tools
FamilyName
S-STFNR/L (RHINO)
BrandName
Taegutec
