S50U CKUNR 16
Top clamp boring bars for negative 55° Parallelogram inserts with 93° approach angle
Price: Log in For Price
Toote spetsifikatsioonid

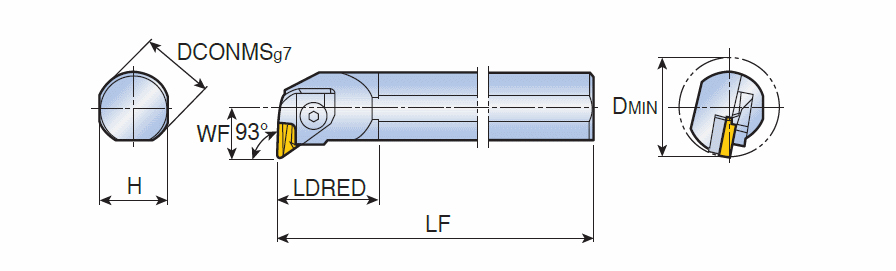

| Connection Diameter Machine Side (DCONMS) | 50 mm | Application | | Int 100° App 70° Diamond | Int 93° App 55° Diamond | |
| Functional Length (LF) | 350 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 60 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 67.2 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Toote omadused
| FamilyDesc | Top clamp boring bars for negative 55° Parallelogram inserts with 93° approach angle | FamilyName | S-CKUNR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
5.1000
Name
Indexable Internal Turning Tools
FamilyName
S-CKUNR/L
BrandName
Taegutec
