S08K STFPR 09-X01

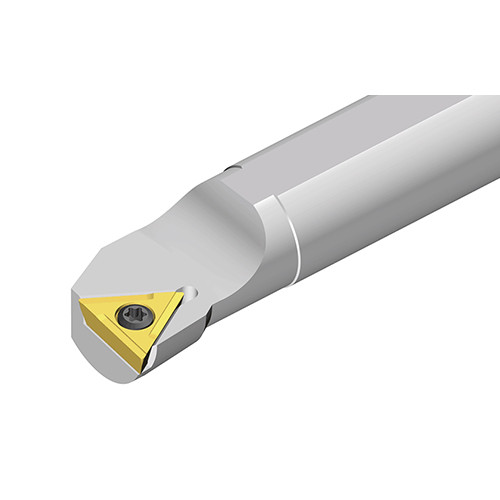

Screw type boring bars for positive Triangular inserts of 11° clearance angle with 91° approach angle
Price: Log in For Price
Toote spetsifikatsioonid

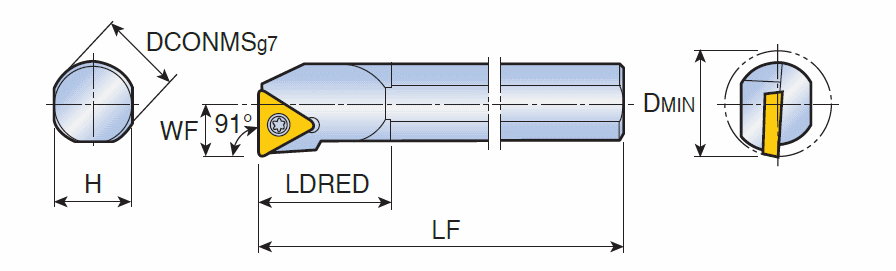

| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Int 91° App 60° Triangle | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 15 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Toote omadused
| FamilyDesc | Screw type boring bars for positive Triangular inserts of 11° clearance angle with 91° approach angle | FamilyName | S-STFPR/L |
| Remarks | TPGX type inserts are available with alternate screw (TPGX 1103 > SO 30081I) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
PackageWeight
0.0600
Name
Indexable Internal Turning Tools
FamilyName
S-STFPR/L
BrandName
Taegutec
