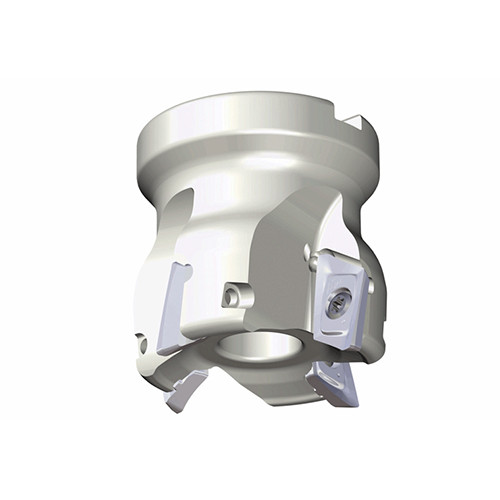

TFM90XEV 350-22R-16
90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | XEVT 160508R-AL |
| Cutting Item Count (CICT) | 3 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | Step down machining | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Toote omadused
| FamilyDesc | 90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining | FamilyName | TFM90XEV-R-16/22 |
| Remarks | Cutter body for inserts with corner radii more than 3.2mm (XEVT 16) and 3.0mm (XEVT 22) should be modified as follows: body "R"=insert "R" 0.3mm | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
PackageWeight
0.4850
Name
Indexable Face Mills
FamilyName
TFM90XEV-R-16/22
BrandName
Taegutec
