TFM45HNS 563-22R-10

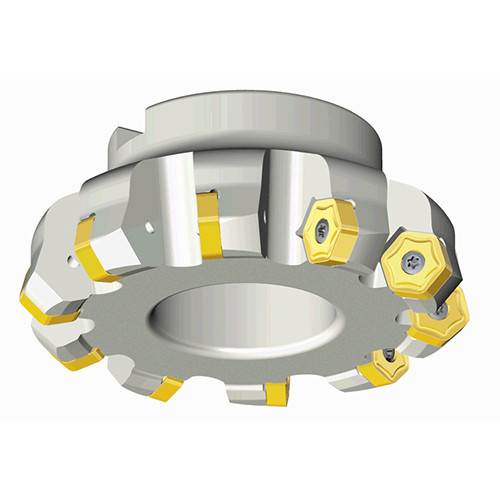

45° Face mills with double sided 12 cutting edges inserts HN 10 & screw clamping for general milling in max. depth of cut 6.35 mm

Price: Log in For Price
Toote spetsifikatsioonid

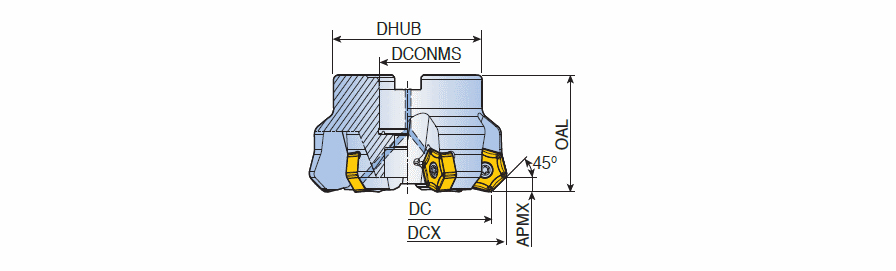

Cutting Diameter (DC) | 77 mm | Master Insert Identification (MIID) | HNHX 1006ANTN-M |
Cutting Item Count (CICT) | 5 | Body Material | Steel |
Depth of Cut Maximum (APMX) | 6.1 mm | Application | | Facing | |
Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
Overall Length (OAL) | 50 mm | Unit | M |

Toote omadused
FamilyDesc | 45° Face mills with double sided 12 cutting edges inserts HN 10 & screw clamping for general milling in max. depth of cut 6.35 mm | FamilyName | TFM45HNS-R-10 |
Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
COO | S.KOREA |
Shipping Info
PackageWeight
1.2800
Name
Indexable Face Mills
FamilyName
TFM45HNS-R-10
BrandName
Taegutec
