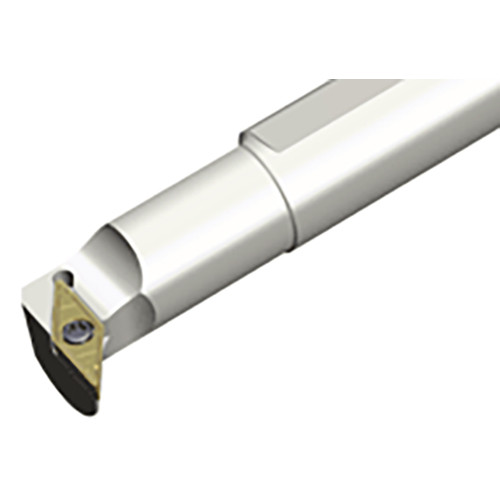

S20R SVUCR 11-D25
TOPMINI screw type boring bar for positive 35° Rhombic inserts of 7° clearance angle with 93° approach angle for small components machining
Price: Log in For Price
Toote spetsifikatsioonid

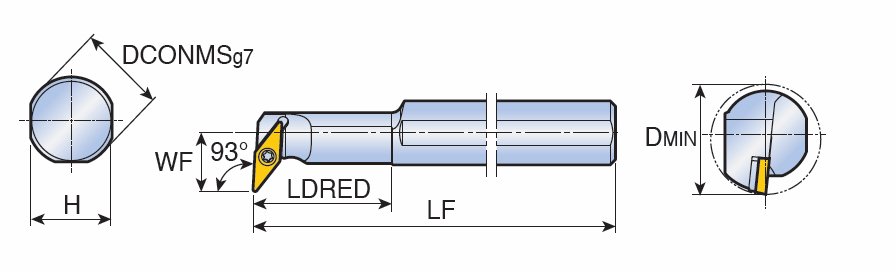

| Shank Height (H) | 18 mm | Application | | Int 100° App 70° Diamond | Int 93° App 35° Diamond | |
| Head Length (LH) | 40.5 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 25 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Toote omadused
| FamilyDesc | TOPMINI screw type boring bar for positive 35° Rhombic inserts of 7° clearance angle with 93° approach angle for small components machining | FamilyName | S-SVUCR/L-D |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.4750
Name
General Indexable Turning Tools
FamilyName
S-SVUCR/L-D
BrandName
Taegutec
