Toote spetsifikatsioonid

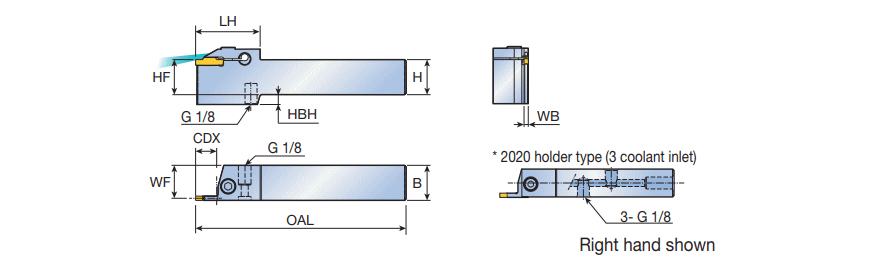

| Cutting Depth Maximum (CDX) | 12 mm | Overall Length (OAL) | 150 mm |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Turning Aluminum Wheels | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Measurement Type | Metric |
| Functional Width (WF) | 23.8 mm | Unit | M |
| Head Length (LH) | 43 mm |
Toote omadused

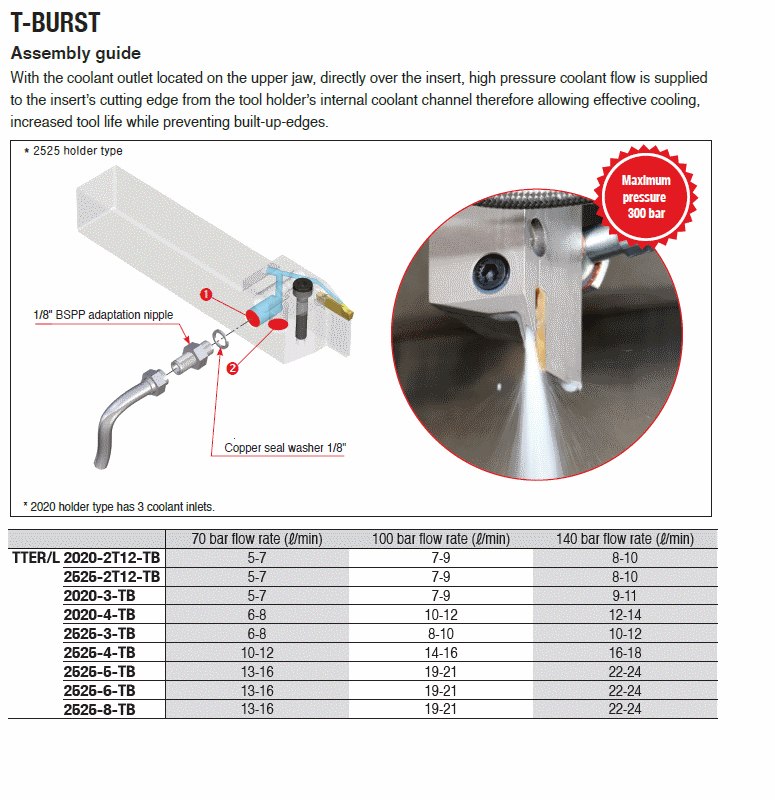

| FamilyDesc | External holders for turning, grooving and parting with high pressure coolant | FamilyName | TTER/L-TB. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.7600
Name

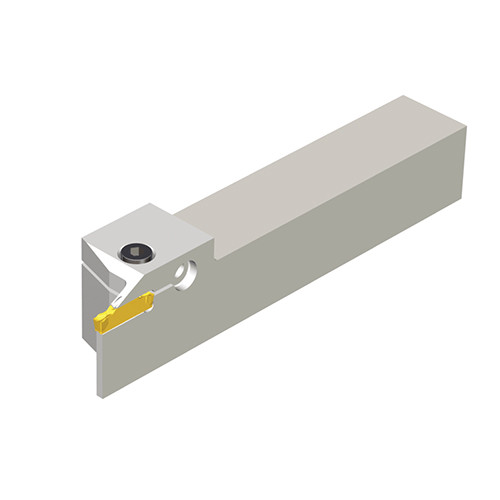

Groove/Turn Indexable Holders
FamilyName
TTER/L-TB.
BrandName
Taegutec
