Toote spetsifikatsioonid

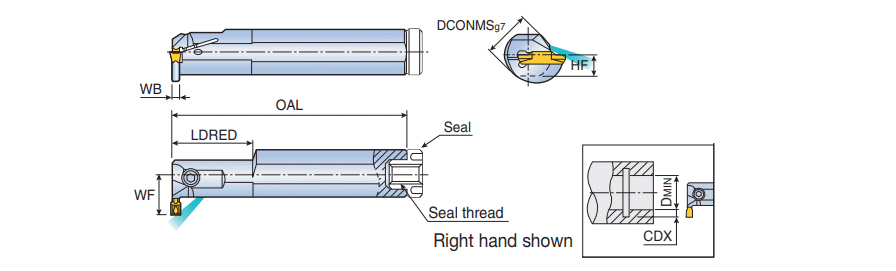

| Cutting Depth Maximum (CDX) | 4.7 mm | Overall Length (OAL) | 250 mm |
| Shank Width (B) | 14 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |

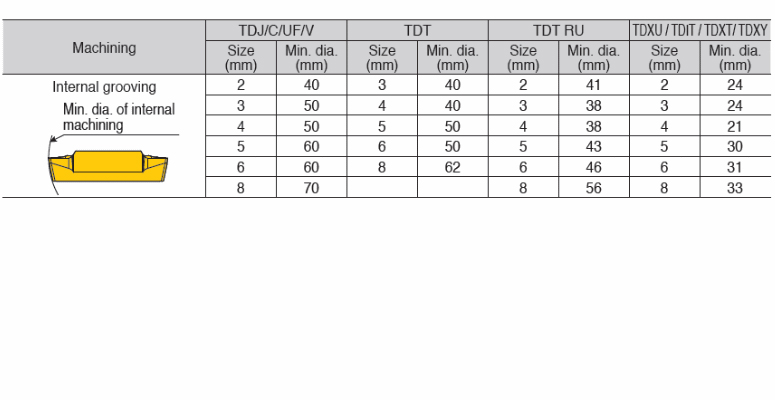

| Minimum Bore Diameter (DMIN) | 31 mm | Body Material | Steel |
| Functional Width (WF) | 20.8 mm | Measurement Type | Metric |
| Head Length (LH) | 60 mm | Unit | M |
Toote omadused

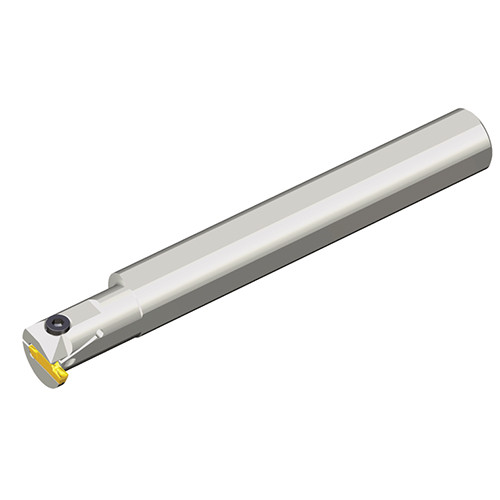

| FamilyDesc | Boring bars with coolant hole for internal grooving & turning | FamilyName | TTIR/L-C |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
1.2000
Name
Groove/Turn Indexable Holders
FamilyName
TTIR/L-C
BrandName
Taegutec
