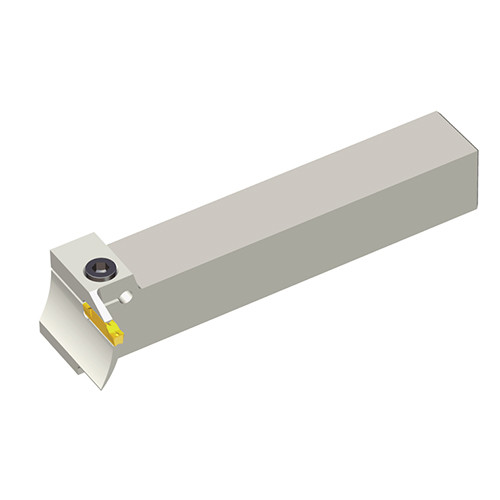

TTFPR 25-60-4
Perpendicular holders for face grooving and turning along shaft
Price: Log in For Price
Toote spetsifikatsioonid

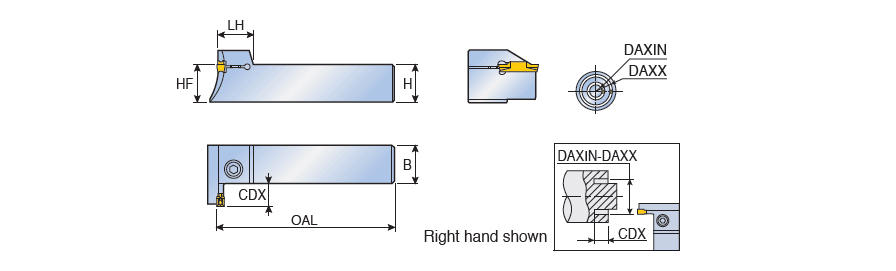

| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 18.5 mm |
| Cutting Depth Maximum (CDX) | 15 mm | Master Insert Identification (MIID) | TDXU 4E-0.4 |
| Axial Groove Outside Diameter Maximum (DAXX) | 85 mm | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 52 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Unit | M |
Toote omadused
| FamilyDesc | Perpendicular holders for face grooving and turning along shaft | FamilyName | TTFPR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.7950
Name
Face Groove/Turn Indexable Holders
FamilyName
TTFPR/L
BrandName
Taegutec
