Toote spetsifikatsioonid

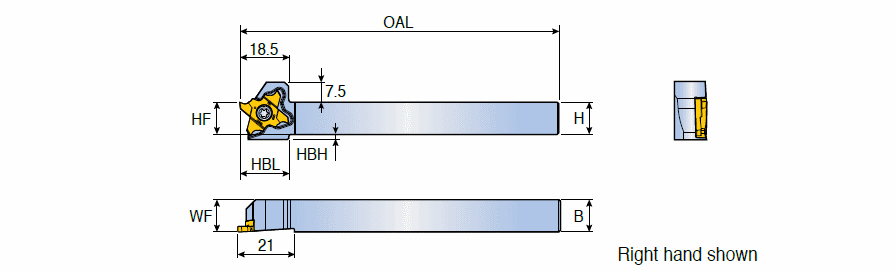

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 0.5 mm | Insert Seat Size Code (SSC) | 20 |
| Cutting Width Maximum (CWX) | 3 mm | Master Insert Identification (MIID) | TQS 20-2.00-0.10-L |
| Overall Length (OAL) | 120 mm | Functional Width (WF) | 20 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | Tools for Swiss Machines | | Head Bottom Offset Height (HBH) | - |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 20 |
Toote omadused

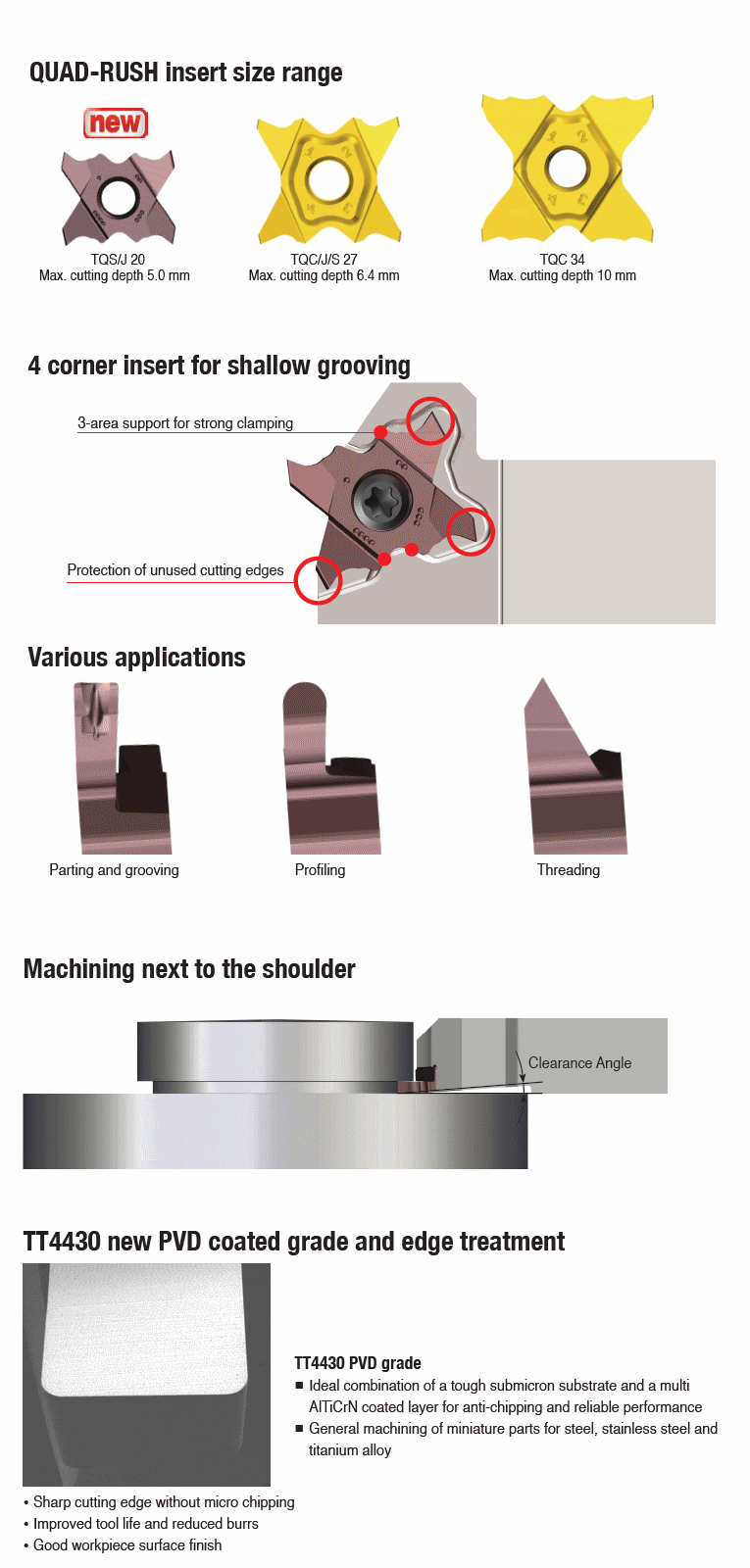

| FamilyDesc | External holders for parting, grooving and next to the shoulder machining with TQS/J 20 small size inserts in swiss turn | FamilyName | TQHR/L-20 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.4050
Name

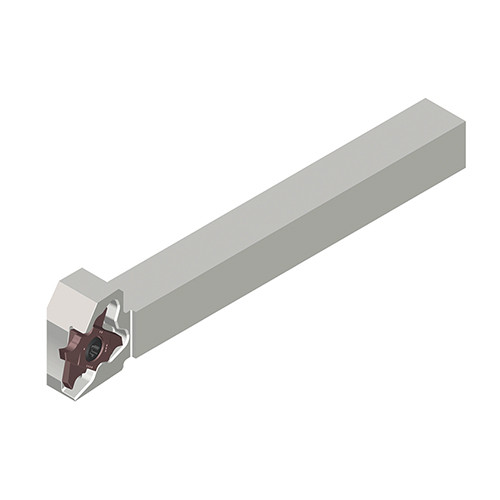

Parting Off Indexable Holders
FamilyName
TQHR/L-20
BrandName
Taegutec
