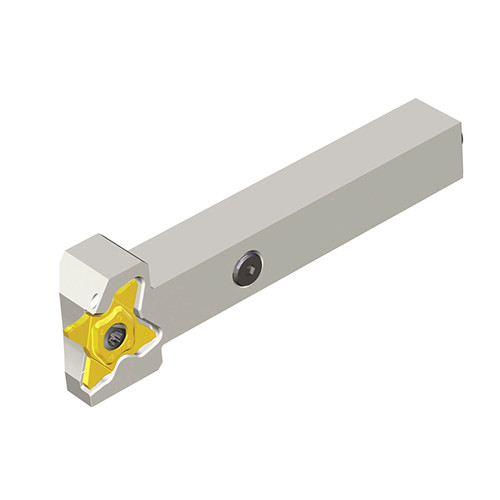

TQHL 16-27-TB
External holders of Parting & Grooving with TQ. 27 inserts with high pressure coolant
Price: Log in For Price
Toote spetsifikatsioonid

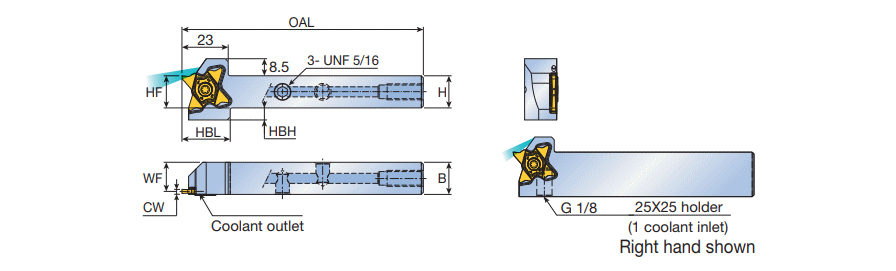

| Shank Height (H) | 16 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 27 |
| Shank Width (B) | 16 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Minimum (CWN) | 0.5 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 5.3 mm | Insert Seat Size Code (SSC) | 27 |
| Overall Length (OAL) | 120 mm | Master Insert Identification (MIID) | TQJ 27-2.00-0.10 |
| Head Length (LH) | 24 mm | Coolant Entry Thread Size (CNT) | UNF 5/16 |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | | Unit | M |
| Body Material | Steel |
Toote omadused
| FamilyDesc | External holders of Parting & Grooving with TQ. 27 inserts with high pressure coolant | FamilyName | TQHR/L-27-TB |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.2800
Name
Parting Off Indexable Holders
FamilyName
TQHR/L-27-TB
BrandName
Taegutec
