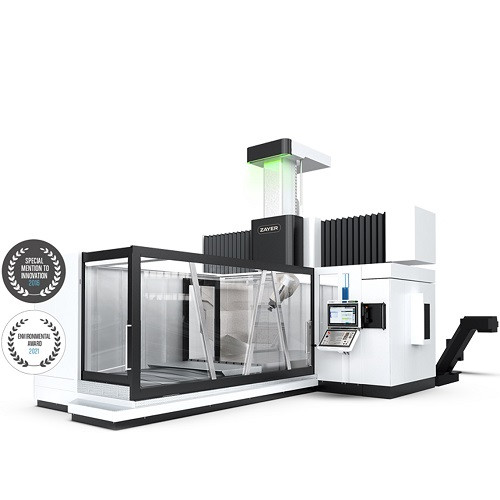

Bridge type milling machine, fixed cross beam and moving table ARES

Nimetus # ZAYARES

BrandName: ZAYER

Tootja nr: ARES

Toote spetsifikatsioonid

Type

Bridge type milling machine

X-Axis

‎4000 - 5000 - 6000 mm

Controller

Y-Axis

3100 (3600 - Optional) mm

Table Width/Diameter

‎1600 (2000 - 2500 - Optional) mm

Z-Axis

1200 (1500 - Optional) mm

Table Length

‎4000 - 5000 - 6000 mm

Tool Storage Capacity

‎30 (40-60 - 80 - Optional)

Spindle Taper

Zayer Heads

Model No

ARES

Spindle Speeds

‎6000 (high torque) / 18000 (high speed) min-1

Table Load

15000 kg

Horsepower

30 (43 - Optional) (high torque) / 33 (high speed) kW

Weight

‎35000-50000 kg

Phase
