Toote spetsifikatsioonid
| Type | Bench Tapping Machines | Horsepower | - |
| Type of Power | Pneumatic |
Toote omadused

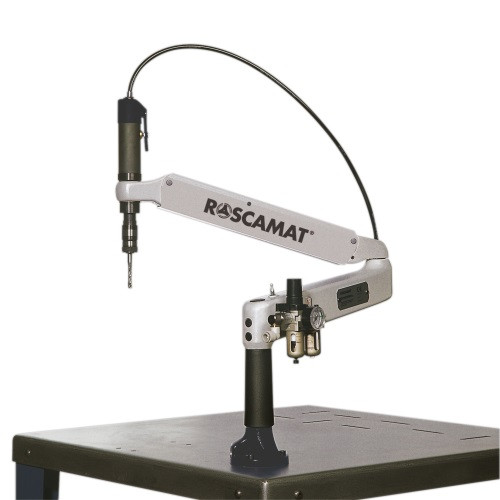

| FamilyDesc | This machine consists of a pendular parallelogram that is balanced by a pneumatic spring, plus a radial arm. The gas spring and radial arm assembly fixes the motor head and keeps it perpendicular to the working area. The motor is equipped with a quick-change system and is rotated by compressed air that has previously been filtered and lubricated by a unit for that purpose. Taps and shank tooling fit to the motor's quick-change system by means of tapholders. | Remarks | ▶ Parameters • Motor TSVII: 202A0100 • Max. speed (rpm): 350 • Max. torque (Nm): 30 • Coupling diameter: Ø 19mm • Tapping capacity in Mild Steel: M14 • Tapping capacity in Aluminum: M16 ▶ Working Area - Radius: 935 mm - Height: 530 + 130 mm ▶ Quick-change toolholder • A wide range of tapholders, all of them with clutch and without it, apart from other quick holding fixtures for different tools, such as drills, sinking tools, threading dies, socket wrenches, etc are available • Toolholder with safety clutch: (so that it slips when it reaches the hole bottom) - Type-1: Ø 19 capacity range M2-M16 • Toolholder without clutch: (for holding different tools with a cylindrical shank and driving cube) - Type-1: Ø 19 capacity range M2-M16 |
