E-J1/3 (J1/MT3)

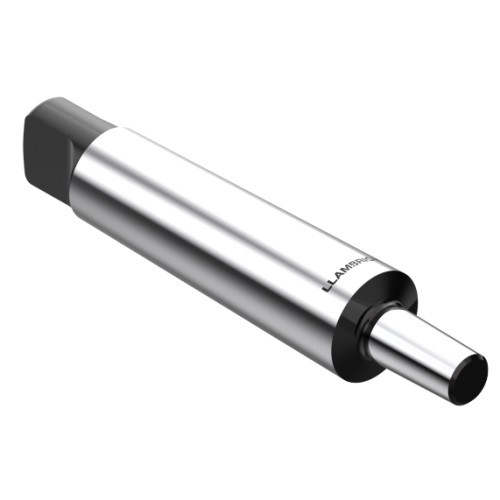

The arbor is an intermediary gripping element between the drill chuck (type CKS, SP and SPX) and the spindle of the machine. Llambrich arbors are totally hardened and precision ground, ensuring a close fit. Maximum concentricity.
Price: Log in For Price
Toote spetsifikatsioonid
| Type | Arbors for drill chucks | For Use With | Drill Chucks |
Toote omadused

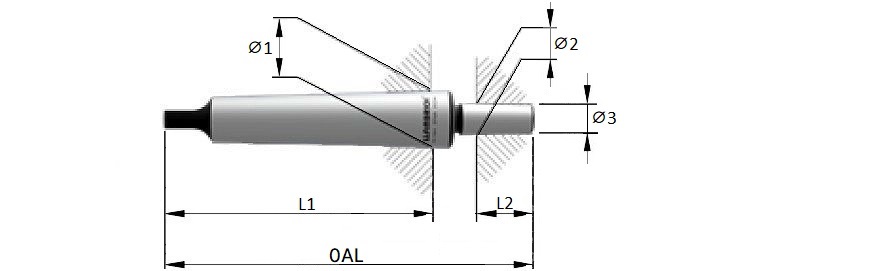

| FamilyDesc | The arbor is an intermediary gripping element between the drill chuck (type CKS, SP and SPX) and the spindle of the machine. Llambrich arbors are totally hardened and precision ground, ensuring a close fit. Maximum concentricity. | Remarks | • For Machine Spindle: - Morse Taper: 3 - ⌀1: 23.825 mm - L1: 94 mm • For Drill Chuck: - Jacobs Taper: 1 - ⌀2: 9.754 mm - ⌀3: 8.5 mm - L2: 16.7 mm • Overall Length (OAL): 120 mm • Weight: 290 g |
