SPS-16 MT-3

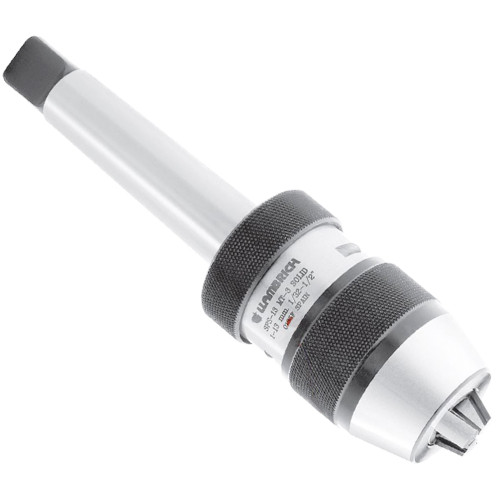

Super Precision Keyless Drill Chucks with Integrated Morse Taper Shank
Price: Log in For Price
Toote spetsifikatsioonid
| Maximum Capacity | 3 mm | Open Length | 85 mm |
| Minimum Capacity | 16 mm | Material | Steel |
| Mount Type | - | Sleeve Diameter | 54 mm |
| Mount | MTA3 | Model No | SPS-16 MT-3 |
| Key Style | Keyless | Weight | 1.72 kg |
| Shank Type | Morse Taper |
Toote omadused
| FamilyDesc | Super Precision Keyless Drill Chucks with Integrated Morse Taper Shank | Remarks | ▶ • Maximum total integrated run-out of 0,04 mm • Arbor integrated in internal socket of drill chuck; compact design • No possibility of taper slipping from drill chuck • Greater rigidity and precision • Self-tightening feature automatically increases gripping force in proportion to increased torque to prevent tool shank slippage. For right-hand rotation applications only • Furnished with milled wrench flats and spanner wrench to allow application of supplementary gripping torque. Light tightening increases gripping torque up to 3 times higher than hand tightening • Resistance to tool loosening on high-speed machines with instant spindle stop ▶ Body Diameter: 54 mm ▶ Open Length: 85 mm ▶ Closed Length: 96 mm |
