Toote spetsifikatsioonid
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Superalloys | | Shape | 60° Triangle |
| Application | | Shouldering | Slotting | Facing | Helical Interpolation | | Insert Style | Triangle |

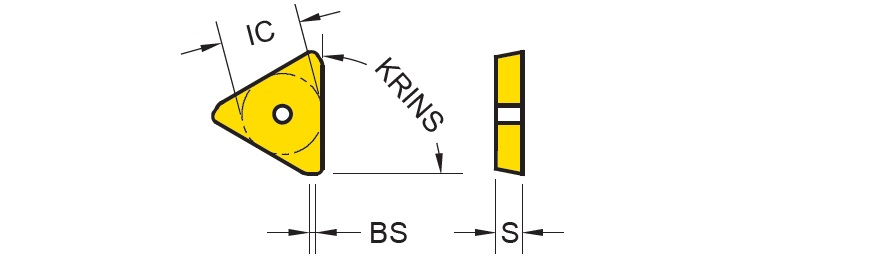

| Cutting Edge Length (L) | 22 | Insert Size | 22 |
| Corner Radius (RE) | 0.3 mm | Maximum Feed per Tooth (fz(max)) | 0.24 mm/tooth |
| Depth of Cut Maximum (APMX) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | - | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 4.76 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Wiper Edge Length (BS) | 1.7 mm | Coating Process | Universal grade for General Milling Application: • Ultra Dense PVD Coating with optimal thermal resistance & strength • Sub-Micron substrate designed for demanding application |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | YG602 | Unit | M |
Toote omadused
| FamilyDesc | Shoulder Milling Inserts TPKN / TPKR / TPCN - Positive (3 Corners ISO) | FamilyName | TPKN/TPKR/TPCN |
| Remarks | • Cutting Edge Angle (KRINS): 90 Degrees • Wiper Edge Clearance (AS): 15 Degrees • Edge Condition: Chamfered • for Improved Surface Roughness • Milling Chipbreakers-For Hardened Material and Cast Irons • Relief Angle (AN): 11 Degrees | BrandName | YG1 |
Shipping Info
Name
Milling Indexable Inserts
FamilyName
TPKN/TPKR/TPCN
BrandName
YG1
