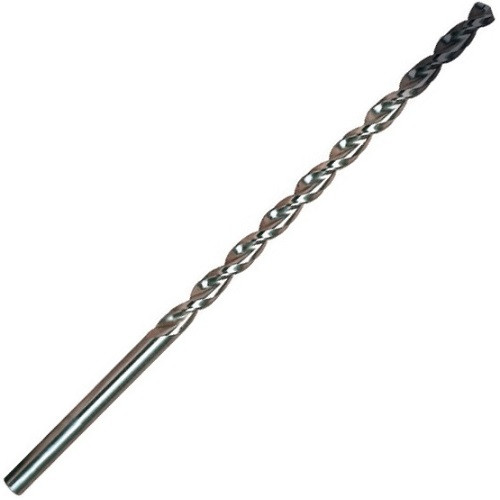

HSS-E Straight Shank twist drill for deep holes, TiAlN Coating, Cylindrical 5x210x315 mm, SD 5
HSS-E Straight Shank Drills for Deep Holes, Form C, TiAlN coating, Cylindrical. Range: O 4.0 - 10.0
Price: Log in For Price
Toote spetsifikatsioonid
| Tool Diameter | 5 mm | Connection Diameter Machine Side (DCONMS) | 5 mm |
| Tool Type | Extral Long twist drill | Flute Length | 210 mm |
| Measurement Type | Metric | Overall Length (OAL) | 315 mm |
| Cutting Edge Material | HSSE | Length Group | Extra Long |
| Applicable Material | | Steel | Cast Iron | | Point Shape | C |
| Shank Type | Round | Helix Angle | 38 Degrees |
| Flute Count (NOF) | 2 | Coating | TiAlN |
| Angle | 130 Degrees | Unit | M |
| Decimal Equivalent | 0.1969 |
Toote omadused
| FamilyDesc | HSS-E Straight Shank Drills for Deep Holes, Form C, TiAlN coating, Cylindrical. Range: O 4.0 - 10.0 | Remarks | • Surface treatment: TiAlN coating on working area • Application: Drilling deep holes in non alloy steels, alloy steels, grey cast iron, malleable cast iron, special aluminum or magnesium alloys |
Related Documentation
