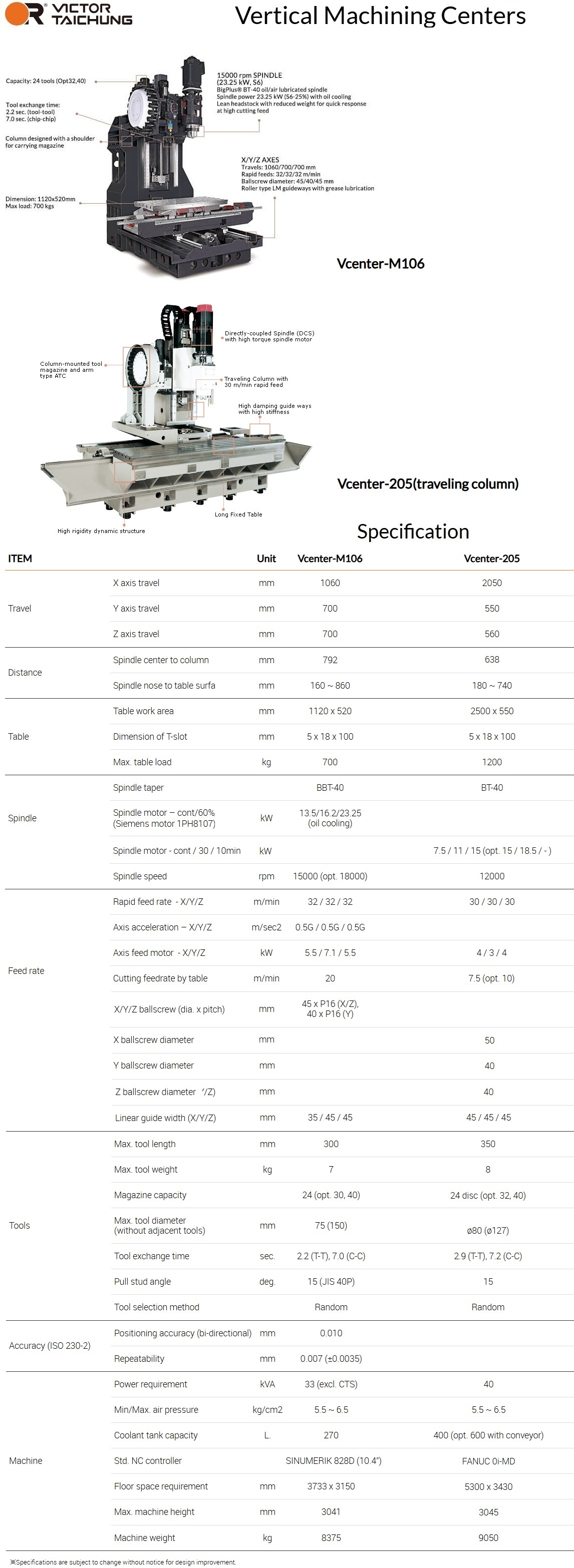

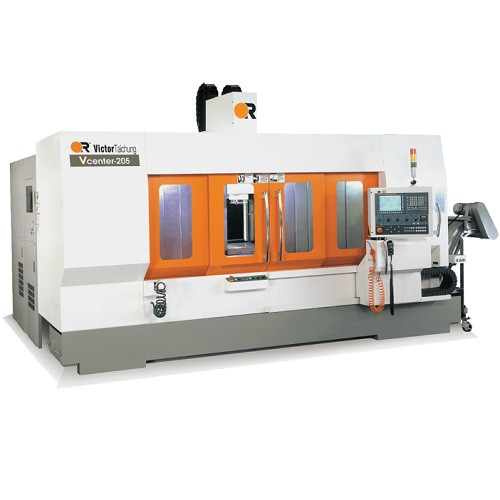

Vertical Pendulum Machining Center VC-205(traveling column)
Designed by following extensive research and feedback from numerous machine tool users, Victor's new Vcenter-205 traveling column vertical machining center has been designed with a long fixed table to provide multi-tasking machining precision with 30 m/min rapid traverse in all axes. The traveling column enables pendulum loading and machining in cycle to reduce load/unload times and to maximize spindle utilization.
Price: Log in For Price
Toote spetsifikatsioonid
| Type | Vertical Machining Center | Y-Axis | 550 mm |
| Controller | Fanuc 0i-MD | Z-Axis | 560 mm |
| Table Width/Diameter | 550 mm | Coolant Capacity | 400 L (opt. 600 L with conveyor) |
| Table Length | 2500 mm | Tool Storage Capacity | 24 disc (opt. 32, 40) |
| Spindle Taper | BT-40 | Operating Dimensions | 5300 × 3430 mm |
| Spindle Speeds | 12000 rpm | Model No | 205 |
| Horsepower | 40 kVA | Table Load | 1200 kg |
| Phase | 3 | Weight | 9050 kg |
| X-Axis | 2050 mm |
Toote omadused
| FamilyDesc | Designed by following extensive research and feedback from numerous machine tool users, Victor's new Vcenter-205 traveling column vertical machining center has been designed with a long fixed table to provide multi-tasking machining precision with 30 m/min rapid traverse in all axes. The traveling column enables pendulum loading and machining in cycle to reduce load/unload times and to maximize spindle utilization. | Remarks | ⮊ High Versatility ⦁ Long Fixed Table accommodates beavier loads and long parts. ⦁ Traveling column with X-axis travel 2050 mm provides excellent access to work area. ⦁ Easy installation for rotary tables or hydraulic fixtures. ⮊ High Productivity ⦁ Rapid feeds 30 m/min (X/Y/Z) reduce tool changeover time. ⦁ Directly Coupled Spindle avoids belt vibration for better finish. ⦁ Central Partition enables higher production than VMC with 2-pallet APC. |
