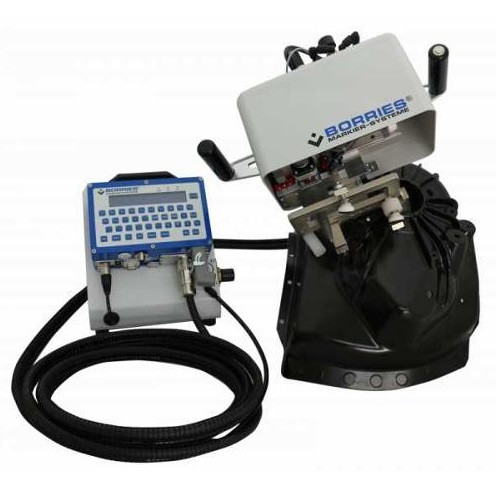

Handheld VIN scribe marking unit 317
These easy-to-carry, portable markers are suitable for many areas of trade and industry. Due to the ease of use, these portable hand-held markers are ideal for marking of body components and for quality assurance and in procution and assembly lines. Marking of parts that are difficult to transport or hard-to-reach areas are no longer a problem with these marking units. Different sizes and variants of our markers are available for stylus and dot-peening marking technology.
The mobile 317 VIN marking unit can also be used for scribe marking. It's a powerful, compact and robust scribe unit for VIN marking in low volume, pilot or SKD / CKD production environment.
By using different adapters, marking flat and round surfaces, such as tubes or pipes, is possible.
Price: Log in For Price
Toote spetsifikatsioonid
| Type | Handheld Marking Units | Minimum Character Size | 1 mm |
| Marking Area | 120 × 25 mm | Maximum Character Size | - |
Toote omadused
| FamilyDesc | These easy-to-carry, portable markers are suitable for many areas of trade and industry. Due to the ease of use, these portable hand-held markers are ideal for marking of body components and for quality assurance and in procution and assembly lines. Marking of parts that are difficult to transport or hard-to-reach areas are no longer a problem with these marking units. Different sizes and variants of our markers are available for stylus and dot-peening marking technology. The mobile 317 VIN marking unit can also be used for scribe marking. It's a powerful, compact and robust scribe unit for VIN marking in low volume, pilot or SKD / CKD production environment. By using different adapters, marking flat and round surfaces, such as tubes or pipes, is possible. | Remarks | Due to its unique ergonomic properties and simple operation, the device is ideal for mobile use. The 317 marking machine is available with different handles for more flexible adaptation and handling. As a lightweight with 5.5 kg (without controller, pneumatic and clamping device), the unit sets new standards. With its small dimensions, it provides a large marking area of 120 × 25 mm. Adaptation to almost all vehicle geometries is possible via quickchange, optional clamping devices. The compact controller offers extensive options for data entry via PC, barcode scanner, PLC or the integrated membrane keyboard. This is also used to easily create and select the model-dependent marking jobs. • Powerful, compact and sturdy marking unit for the marking of VIN numbers in small series, pilot or SKD/CKD production • Ideally suited as a back-up or repair device in large-scale production • Scribe marking according to international automotive industry standards in terms of scribe depth and font norm • Ergonomic, low-noise: Typical noise level of 74 dB(A) due to the integrated touch-on function of the scribe stylus • Marking area 120 × 25 mm (X/Y) suitable for 2-line marking • Heavy-duty, low-wear scribe stylus made of synthetic diamond with extremely long service life • Robust version, easy integration and adaptation to the model-specific marking positions using a quick-change clamping device on a standardised mount • Coding of the devices possible • Drive with powerful, highly dynamic stepper motors • Connections available for keyboard, barcode reader, Ethernet and fieldbus systems • Operation as a standalone device or with PC/notebook, multilingual software • Password protection for operating and set-up functions • Optional double number control and verification of the VIN according to Modulo 11 • Configurable format check of the VIN number per vehicle model • Double reading of data with data comparison function to minimise incorrect readings • Switchable soft encoder to ensure marking quality Options • Vehicle-dependent clamping devices with manual, pneumatic or magnetic clamping EK2 box control (marking controller): • Universal 2-axis marking controller in compact housing • With integrated membrane keyboard and 4-line display • Protection class IP 53 • Dimensions: 220 × 144 × 82 mm (L x W x H) • Included in the scope of delivery |

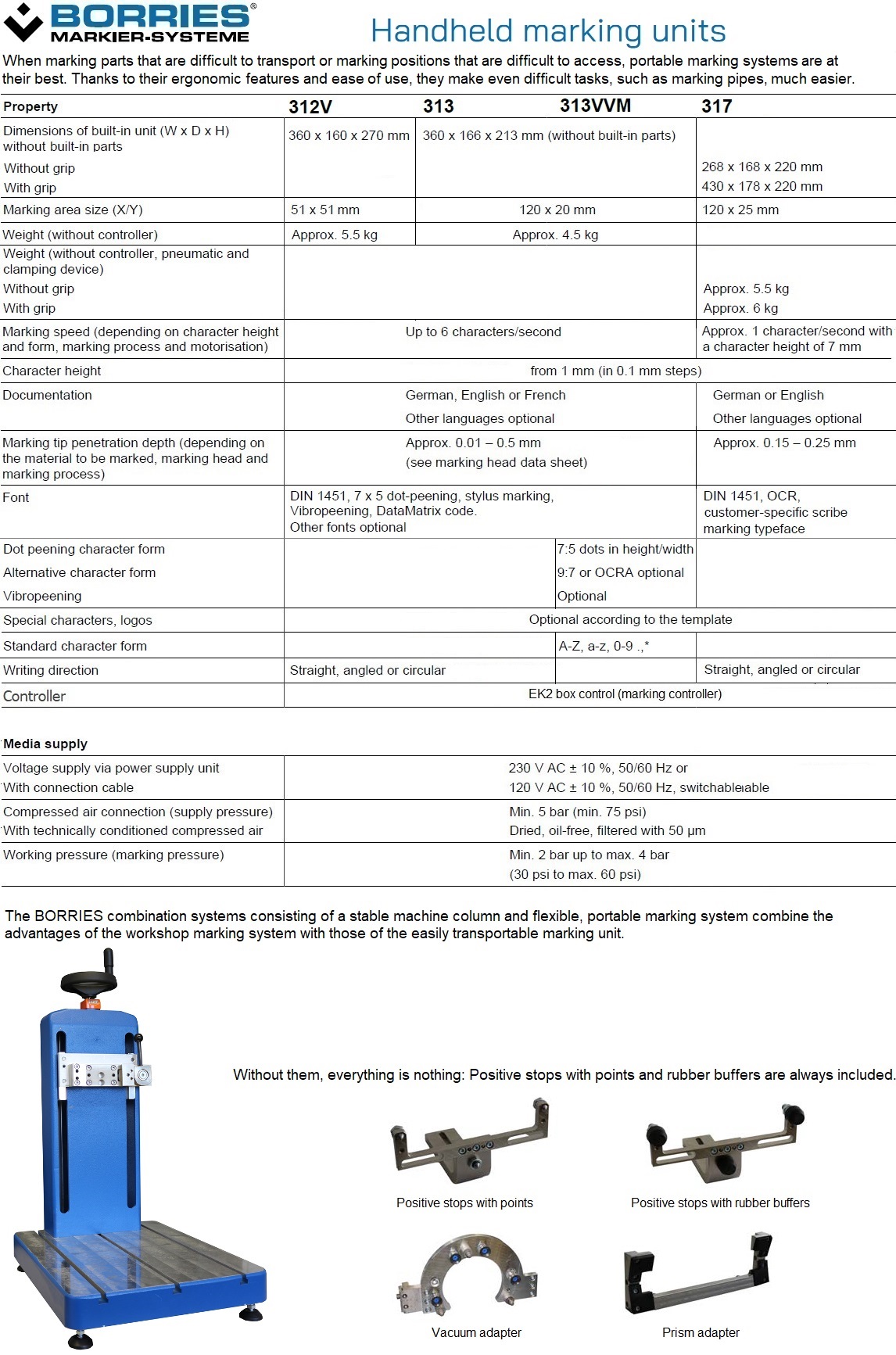

Related Documentation
