Toote spetsifikatsioonid
| Type | Battery Lift Magnets | Magnet Height | 659 mm |
| Load Capacity | 1800 kg | Model No | BMP1800 |
| Maximum Rated Flat Capacity | 1800 kg | Weight | 167 kg |
| Magnet Length | 470 mm | Maximum Rated Round Capacity | 1130 kg |
| Magnet Width | 242 mm |
Toote omadused

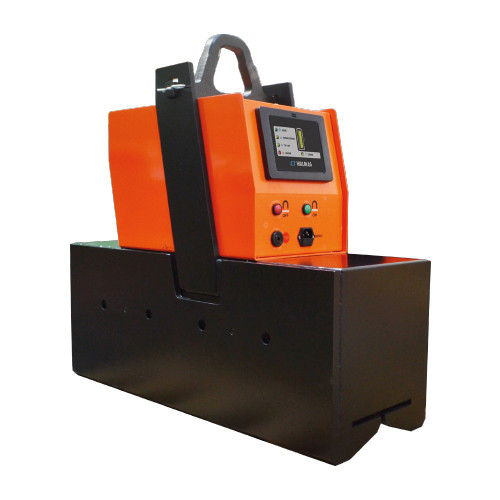

| FamilyDesc | Battery-operated BMP lifting magnets are designed especially for lifting and handling materials with a round cross-section. Also suitable for handling flat materials as well as other various profiled sections, angle bars, etc. Integrated 12V battery provides 8 hours of operation at 50% duty cycle. The magnetic field is also strong enough for loads with variable, uneven surfaces and air gaps. During designing, we place emphasis on safety: The battery-powered lifting magnet will never switch off during manipulation spontaneously. Simultaneous push of 2 buttons is required to release the load. It cannot be switched on if the battery is not sufficiently charged. Battery status below the safe limit is indicated by visual and audible alarms. | Remarks | Advantages: • The shape of the poles makes it possible to handle round and other materials • It can also be controlled using the IR remote control from up to 10 metres away • Display with battery level LED indicator Parameters: • Battery: 12 V • Battery life: 8 hours at 50 % cycle Nominal lifting capacity for flat material: up to 3600 kg • Nominal lifting capacity for round material: up to 2260 kg • Temperature: max. 50 °C • Safety factor: 2:1 • Guarantee: 2 years Use: • Handling loads with reduced surface quality • Handling tubes, bars, I-, H-, T-, and Z-shaped profiled sections and more It will also manage flat material, angle sections, sheet piles, etc. Scope of supply: • Magnet with label • Instructions for use • IR remote control |
