Toote spetsifikatsioonid

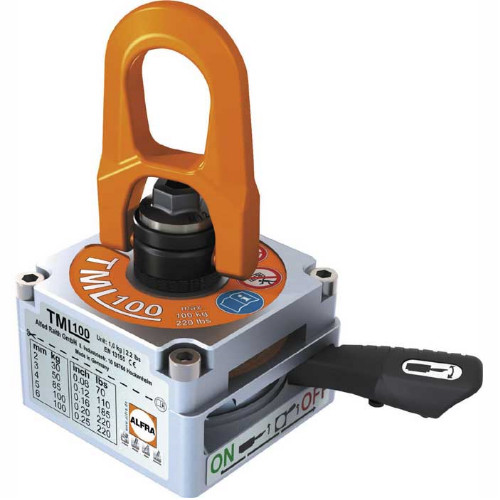

| Type | Permanent Lift Magnets | Magnet Height | 147 mm |
| Load Capacity | 100 kg | Material | Neodymium |
| Maximum Rated Flat Capacity | 100 kg | Model No | TML 100 |
| Magnet Length | 82.5 mm | Weight | 1.7 kg |
| Magnet Width | 82.5 mm | Minimum Material Thickness for Activation | 1 mm |
Toote omadused
| FamilyDesc | Lifting magnets for flat steel products | Remarks | ■ Max. load-bearing capacity of 50 kg (110 lbs) with 3 mm (1/8″) (material thickness and 100 kg load-bearing capacity from just 6 mm (plus triple safety factor) ■ Outstanding performance on thin-walled materials (operable from just 1 mm (1/32″) ■ 360° rotable and 180° pivotable load swivel – even under full load ■ Wear-resistant magnetic contact area made of hardened steel with TiN-coating preventing damages and guaranteeing a long lifetime |
