Toote spetsifikatsioonid

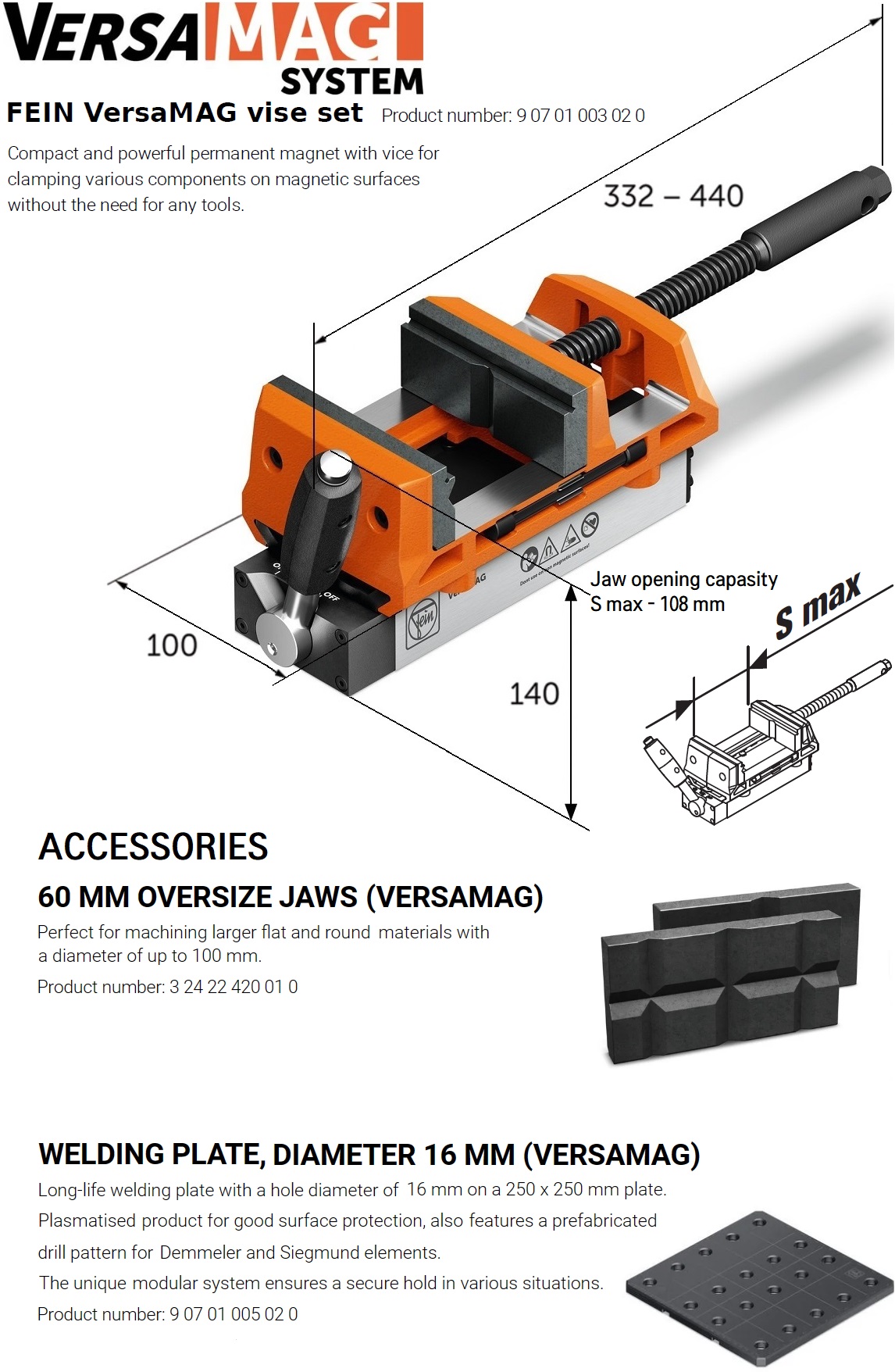

| Type | Magnetic Vise | Base Motion Type | Straightliner |
| Jaw Width | 100 mm | Maximum Clamp Force | - |
| Jaw Opening Capacity | 108 mm | Base Width | 70 mm |
| Jaw Height | 40 mm | Weight | 10.95 kg |
| Orientation Type | Any | Overall Length | 332 - 440 mm |
| Number of Stations | 1 | Overall Height | 140 mm |
| Base Length | 212 mm |
Toote omadused

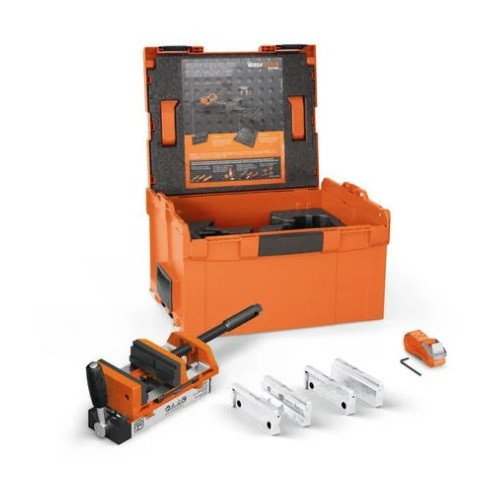

| Remarks | • Pair of protective jaws set (P) Prisma and (B) Blank Aluminium: Clamping of flat material possible without any problems thanks to the upper 90° groove. No scratching of the material - highest quality even with sensitive workpieces such as stainless steel, aluminium or plastics. No wobbling or slipping of the workpiece thanks to the protective jaws. The FEIN premium quality of the protective jaws guarantees durability while protecting the materials. Saves reworking time and increases the productivity of sensitive workpieces • Mobile, flexible and swift use. Adapts to every workstation thanks to the compact design and extra-narrow permanent magnet • Optimises every workstation: clean and reliable working with versatile application options • Modular system: the unique modular system ensures a secure hold in a very wide range of work situations and the right accessories can be added at any time • 30% magnetic bias for precise alignment of the permanent magnet • The vice has a clamping range of 108 mm and a jaw width of 100 mm • L-BOXX 238 case with appropriate inlay for the FEIN VersaMAG vice set with a jaw width of 100 mm. Keep things stowed clearly, tidily and safely. Thanks to the tray for small parts, there is room for all accessories and the L-BOXXs can also be joined together and stacked with ease Supplied 1 x permanent magnet 1 x mounting plate 1 x vice 1 × 3 mm socket head wrench 1 lashing strap 2 x B (Blank) aluminium jaws 2 x P (Prism) aluminium jaws, up to diameter of 30 mm 1 plastic tool case (L-BOXX 238) 1 x inlay for FEIN VersaMAG vice set |
