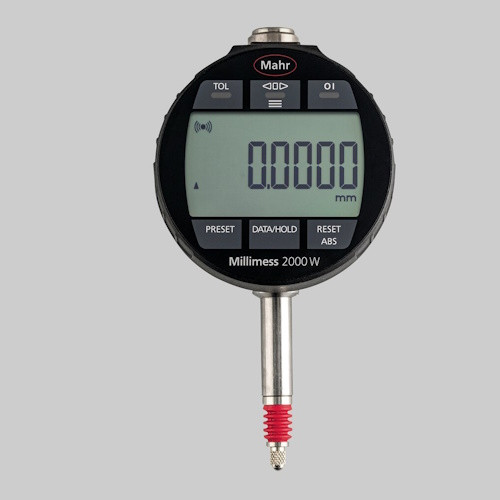

Inductive dial comparator Millimess 2000 Wi. Range ± 1mm / Res. 0,1µm. WI
Millimess 2000 inductive dial comparators for static measuring tasks
Price: Log in For Price
Toote spetsifikatsioonid

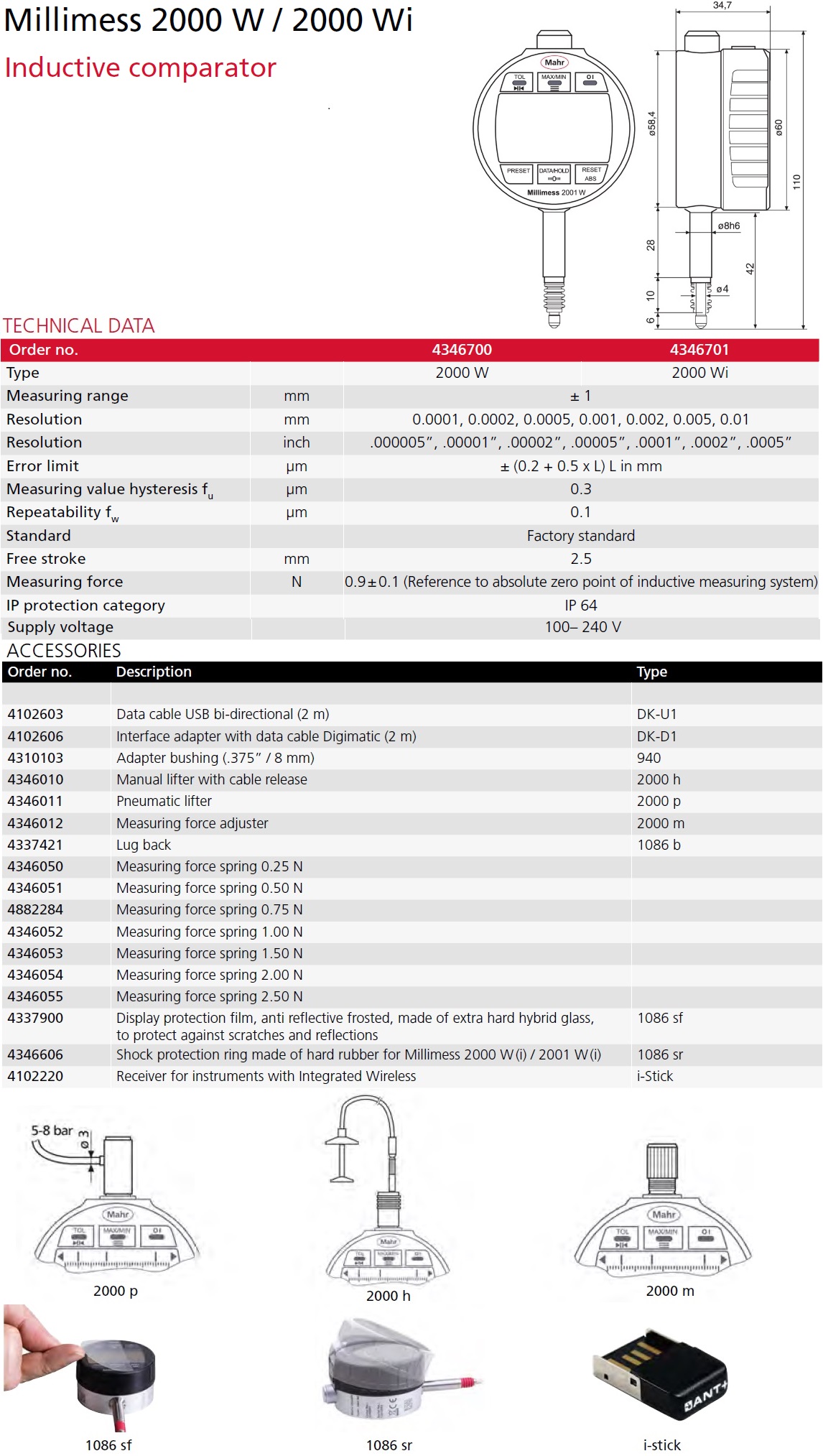

| Type | Millimess 2000 Wi | Standard | Factory standard |
| Indicator Style | Digital | Graduation | mm / inch |
| Total Range | ± 1 mm | Model No | 2000 Wi |
| Dial Color | - | Resolution | 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01 mm |
| Dial Reading | - | Output | USB, Digimatic |
| Dial Size | 60 mm |
Toote omadused
| FamilyDesc | Millimess 2000 inductive dial comparators for static measuring tasks | Remarks | Functions • ON/OFF • mm/inch • RESET (set display to zero) • PRESET (for entering a numerical value) • ABS (reference to the electrical zero point) • Selectable resolution • TOL (tolerance and warning limits input) • Factor (adjustable) • Reversal of counting direction • HOLD (storage of measured values) • LOCK function (key lock) • DATA (data transmission) • Bidirectional data interface (external output and input option of characteristic values as well as setting of individual lock functions by MarCom Software) Features • Advantages of tempered glass front with touch control panels: - Scratch and impact resistant surface - Excellent protection against dust, coolants and lubricants - Wear-free touch operating keys - Improved safety of measurement values in measuring stands, as only a light touch of the key - No keystroke - is required, thus no adjustment or deformation of the measuring device • High contrast LCD display • Clear tolerance symbols and colored LED signals (red, green, yellow) for measured value classification - with warning limit input: No Go / Go / Warning Limit - without warning limit input: No Go / Go / Rework • Operating and display unit (bezel) can be rotated through 280° • Mounting shank and measuring spindle are both made of hardened stainless steel • Measuring spindle is mounted in a high precision ball guide for minimal hysteresis • Linearized inductive absolute measuring system • Measuring force spring is interchangeable • Lower stop is adjustable • Software: MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS– 232 interface) • Digit height: 11.5 mm • Energy supply: Integrated rechargeable accumulator (up to 4 weeks) or powered by USB data cable • Battery type: Lithium Polymer Accu 3.7 V • Package contains: - instruction manual - USB data and charging cable type DK-U1 - plug-in power supply (with 4 interchangeable adapters) for USB - rubber bellows - screwdriver for pre-stroke adjustment (hexagon socket 0.9 mm) - case |
