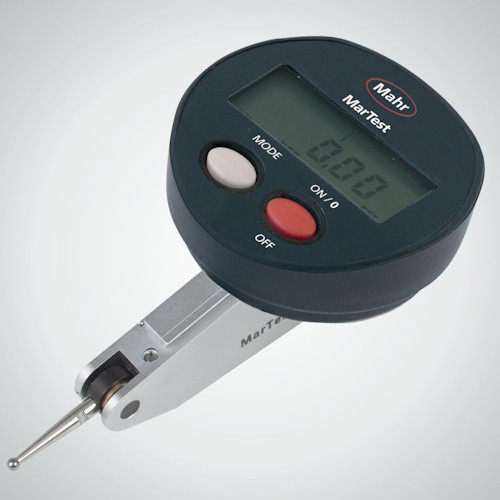

Toote spetsifikatsioonid
| Type | 800 EW | Includes | mounting shaft 800a8, Spanner for changing the styli, stylus diameter ø 2 mm, case |
| Indicator Style | Digital | Graduation | mm / inch |
| Total Range | ± 0.4 mm | Model No | 800 EW |
| Dial Color | - | Resolution | 0.001 mm/ .00005″ |
| Dial Reading | - | Dial Face Diameter | 44 mm |
| Dial Size | 44 mm | Output | Opto RS– 232C, USB |
| Standard | Factory standard |
Toote omadused
| FamilyDesc | Mahr Digital Test Indicator | Remarks | FUNCTIONS • ON/OFF • RESET (set display to zero) • mm/inch • MAX/MIN memory for searching the reversal point • (MAX-MIN) for testing flatness and concentricity FEATURES • Inductive measuring system • battery life of approx. 2 years • Water- and coolant-resistant display unit IP65 • Combined analog and digital display • Operating and display unit can be rotated 360 Degrees; • Satin chrome finished housing with 3 dovetail guideways • Movement bearings are jeweled • Shockproof measuring mechanism, axes mounted in precious stones • Automatic adjustment of contact direction • Double lever supported in ball bearings • Overload protection provided by slip clutch Applications • Measurement of concentricity, alignment, parallelism and flatness • Centering of bores and shafts • Parallel or perpendicular alignment of work pieces |
