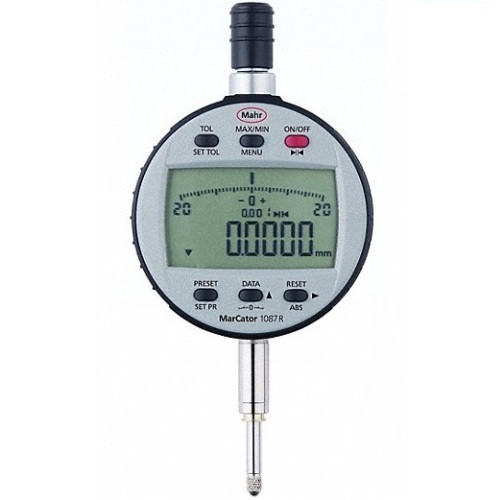

Digital dial indicator MarCator 1087 R, Measuring span 12.5mm
Digital Indicators with combined analog and digital display
Price: Log in For Price
Toote spetsifikatsioonid
| Type | 1087 R | Dial Face Color | Digit height: 8.5 mm |
| Range | 12.5 mm | Stem Diameter | 8 mm |
| Reading | 0.0005 mm | Description | Error limit mm: 0.004 ; Measuring force N: 0.65 – 0.9 |
| Resolution | 0.0005, 0.001, 0.002, 0.005, 0.01 | Model No | 1087 R |
| Set Includes | instruction manual, battery | Face Diameter | 60.5 mm |
Toote omadused
| FamilyDesc | Digital Indicators with combined analog and digital display | Remarks | Functions • ON/OFF • RESET (set display to zero) • mm/inch • Reversal of counting direction • PRESET (for entering a numerical value) • TOL (enter tolerance limit values) • MAX/MIN memory for searching the reversal point • (MAX-MIN) for testing flatness and concentricity • ABS (display can be set to zero without losing reference to preset) • DATA (data transmission via connection cable) • Factor (adjustable) • LOCK (individual key lock) Features • High contrast LCD display, thus very clear and safe to read • Operating and display unit (bezel) can be rotated through 280° • Immediate measurements due to the Reference System • Lifter protection cap on the measuring spindle • Mounting shank and measuring spindle are both made of hardened stainless steel • Digit height: 8,5 mm • Data interface: Opto RS – 232C, Digimatic, USB • Energy supply: Battery life approx. 3 years • Battery type: CR 2450N (3V Lithium) • IP protection category: IP 42 Applications Comprehensive measuring functions for • Static measurements such as lengths, distances and length differences • Dynamic measurements such as radial runout, straightness and flatness via MAX / MIN / MAX-MIN functions |
