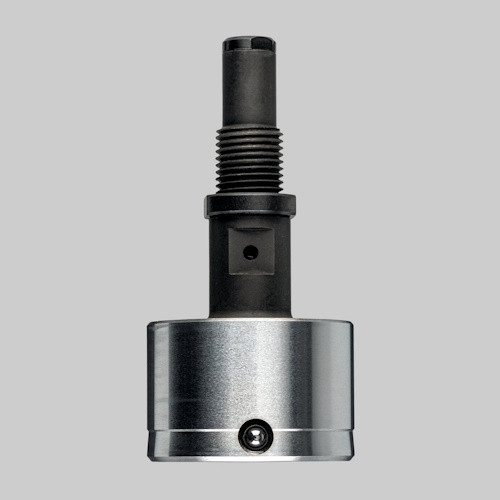

Plug Gage Marameter 844 D, 2-<3 mm
Standard version for general use for quick control of precise holes.
Price: Log in For Price
Toote spetsifikatsioonid
| Type | 844 D | Graduation | - |
| Minimum Measurement | 2 mm | Probe Type | Measuring probe |
| Maximum Measurement | <3 mm |
Toote omadused
| FamilyDesc | Standard version for general use for quick control of precise holes. | Remarks | • Measuring head has a hard, stainless cylinder guide and carbide tipped anvils • The carbide expanding pin transfers radial movement to indicating instrument • Constant measuring force as a result of built-in spring, eliminating user influence • Extensive modular system is composed of measuring head, holder, depth extension, right angle attachments and depth stops Application: Standard model • For rapid testing of diameter, roundness and conicity of bores • Especially suitable for testing batches with tight tolerance zones 10 μm and more • Rocking in the bore is not required to determine diameter • Ideal for use in conjunction with digital display units and for subsequent processing of measured values |
