Self-centering dial bore gage Marameter 844 KC, 1.50-3.95 mm
Self-centering Dial Bore Gauges 844 K with measuring head made in harden
steel, hard chrome plated
Price: Log in For Price
Toote spetsifikatsioonid
| Type | 844 K | Depth | | 16 mm (1.5-2.45) | 21 mm (2.3-3.95) | |
| Minimum Measurement | 1.5 mm | Number of Contacts | 9 measuring probes |

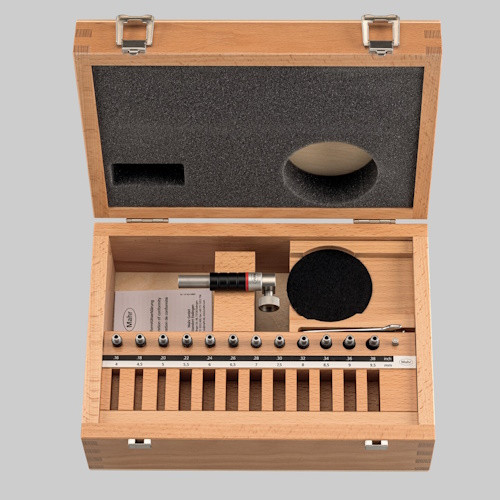

| Maximum Measurement | 3.95 mm | Included | Measuring holder 844 Kg, probe, expanding pin, wooden case, excludes indicator |
| Graduation | - |
Toote omadused
| FamilyDesc | Self-centering Dial Bore Gauges 844 K with measuring head made in harden steel, hard chrome plated | Remarks | Application: • For indicating measurement of diameter and testing for roundness and conicity of bores • Especially suitable for testing batches • Determine the reversal point by rocking in the bore FEATURES • Measuring head made of hardened steel, hard chrome plated • Constant measuring force as a result of built-in spring, eliminating user influence • Extensive modular system is composed of measuring head, transfer needle, holder, depth extension, right angle attachments and setting rings The minimum set of a measuring instrument consists of: • Measuring head, transfer needle and holder plus indicator unit • Package contains: - measuring holder 844 Kg - probe, expanding pin - wooden case - excludes indicator |
